Description
Product Overview

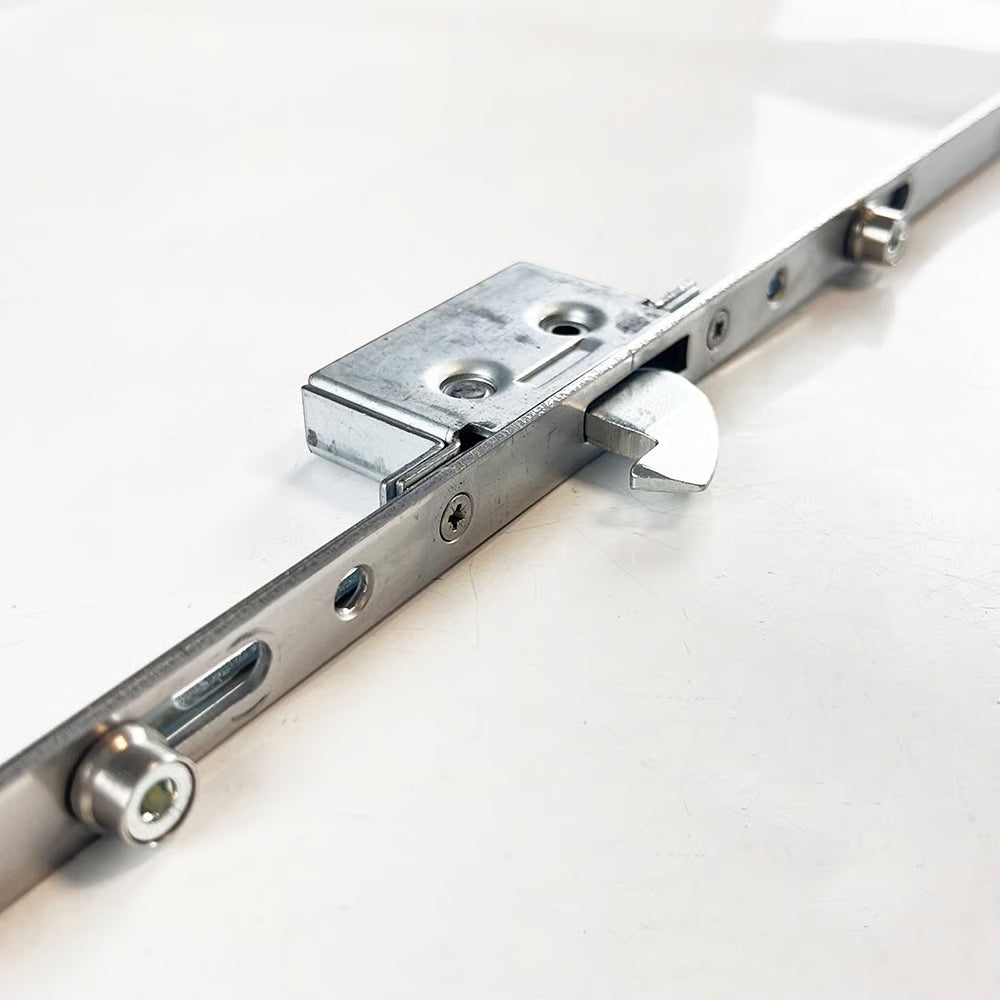

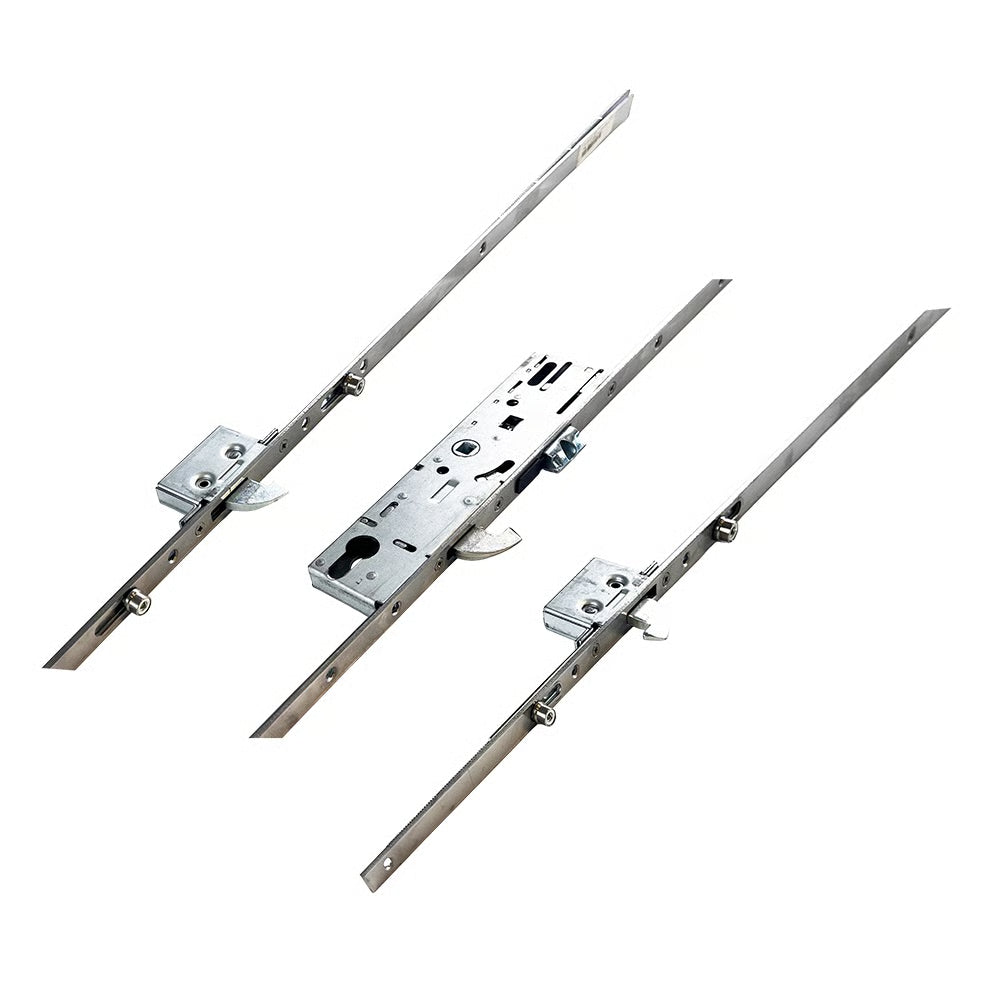

Introducing the split spindle Yale multipoint locking system, designed for enhanced security and durability. This system features three robust hooks and four rollers, ensuring a tight seal and reliable locking mechanism. With a 16mm faceplate and a convenient 35mm backset, it is an ideal choice for various door types.
Product Specifications
- Centres (PZ): 92mm
- Case Height: 217mm
- Case Depth: Backset + 18mm
- Length: 2200mm
- Distance Between Hook Bolts: 1170mm
- Distance Between Outer Rollers: 1360mm
- Distance Between Inner Rollers: 980mm
This multipoint lock not only provides superior security but also ensures smooth operation and longevity, making it a perfect addition to your door hardware solutions.
