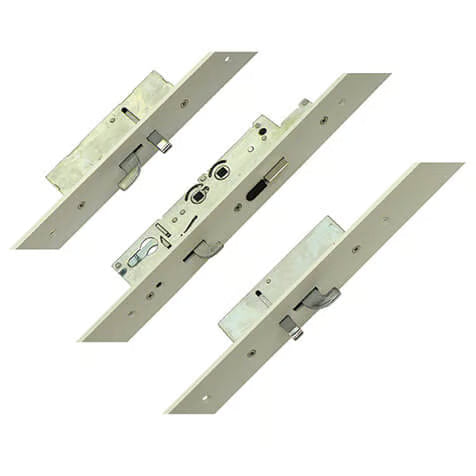

XL Latch 3 Hooks 2 Anti Lift Pins Flat 44mm White Faceplate Double Spindle Multipoint Door Lock

Fullex XL Multipoint Door Lock Overview

The Fullex XL multipoint door lock is engineered for maximum security and reliability, featuring a robust design that includes:

• 3 Hooks
• 2 Pin Bolts
• 1 Latch
• 2 Anti Lift Bolts

This lock is versatile, available in various configurations such as double, single, or split spindle gearboxes, making it suitable for different locking mechanisms including lift lever locks and nightlatches.

Key Features

• Security Design: The XL lock is characterized by its three hooks and two steel anti-lift pins, ensuring enhanced security.

• Interchangeable Locks: All locks share the same door prep, allowing for easy interchangeability, although the double spindle requires different handles.

• Identification: Look for the Fullex logo on the faceplate and the distinctive cut-out at the top corner of the gearbox for easy identification.

• Extendable Design: Each lock can be extended top and bottom, providing flexibility and compatibility with Fullex high-security shoot bolts to meet PAS24 standards.

Specifications

• Gearbox Dimensions: Available in 35mm and 45mm backsets, measuring 227mm high plus backset + 15mm.

• Hook Design: The hooks are made from Dacromet coated A3 sintered steel, with the top hook throwing downwards and the bottom hook throwing upwards.

• Corrosion Resistance: Rated to BS EN 1670 Grade 4 for 240 hours, ensuring durability in various environments.

• Cycle Tested: Designed to withstand 200,000 operations, ensuring long-lasting performance.

Operation Instructions

To Lock the Door:

1. Close the door to engage the latch automatically.
2. Lift the handle to engage the locking points.
3. Turn the key to lock the system.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle down to disengage the locking points.
3. A quarter turn of the key will retract the latch.

Product Compatibility

The Fullex XL lock is suitable for use on both aluminium and composite doors, and we offer a range of associated products including keeps, spindles, handles, and accessories to complement your locking system.

Product Specification Summary

• Manufacturer: Fullex
• Backset: Select from drop-down
• Centres PZ: 92mm/62mm
• Faceplate: Select from drop-down
• Spindle Size: 8mm
• Operation: Select from drop-down
• Handing: Non-handed
• Distance Between Inner Locking: 1300mm
• Height: 2040mm
• Top/Bottom Hook to Spindle: 650mm

For further assistance or to explore our product range, please refer to our website or contact our support team.
