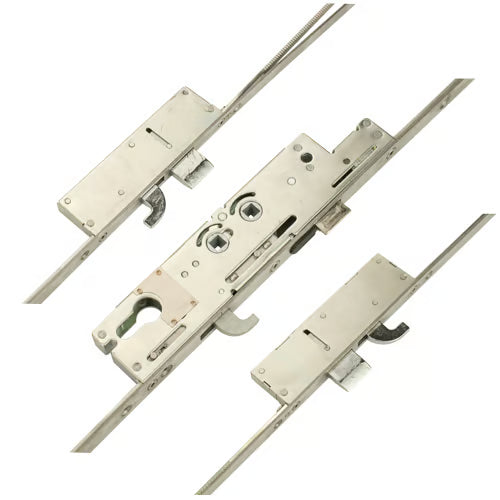

XL Latch 2 Deadbolts 3 Hooks Double Spindle Multipoint Door Lock

Fullex XL 2+2 Multipoint Door Lock Overview

The Fullex XL 2+2 multipoint door lock is engineered for superior security and reliability, featuring a robust design that includes 3 hooks, 2 deadbolts, and 1 latch. This lock is ideal for both UPVC and aluminium doors, ensuring peace of mind for homeowners.

Key Features:

• Security Design: The XL 2+2 lock incorporates three hooks and two deadbolts, strategically positioned for enhanced protection.

• Versatile Operation: Available in a double gearbox configuration, it can function as a lift lever lock or a double spindle nightlatch, adapting to your specific needs.

• Easy Identification: Look for the Fullex logo stamped on the faceplate. The unique cut-out in the top corner of the gearbox is a hallmark of the XL series.

• Extendable Flexibility: Each XL lock can be extended at both the top and bottom, providing versatility. When paired with Fullex high-security shoot bolts, it meets PAS24 standards for security.

• Durable Construction: The hooks are made from chrome plated A3 hardened cast steel, ensuring long-lasting performance. The upward-throwing hook design enhances locking efficiency.

Operation Instructions:

To Lock the Door:

1. Close the door to engage the latch automatically.
2. Lift the handle to activate the locking points.
3. Turn the key to secure the system.

To Unlock the Door:

1. Turn the key to unlock.
2. Push the handle down to disengage the locking points.
3. A quarter turn of the key will retract the latch.

Corrosion Resistance & Durability:

• Corrosion Resistance: Rated to BS EN 1670 Grade 4 for 240 hours.
• Cycle Tested: Endures up to 200,000 operations, ensuring reliability over time.

Product Specifications:

• Manufacturer: Fullex
• Backset: Customizable via drop-down selection.
• Centres PZ: 92mm/62mm.
• Spindle Size: 8mm.
• Handing: Non-handed.
• Dimensions:
  • Height: 2200mm
  • Distance Between Inner Locking: 1376mm
  • Top Hook to Spindle: 673mm
  • Bottom Hook to Spindle: 703mm
  • Top Deadbolt to Spindle: 673mm
  • Bottom Deadbolt to Spindle: 706mm
• Material Compatibility: Suitable for UPVC and Aluminium doors.

Additional Products:

We offer a comprehensive range of associated products for the Fullex XL 2+2 multipoint door locks, including keeps, spindles, handles, and accessories to complete your security solution.

Latch Reversal Instructions:

To reverse the latch, simply undo the screw, remove the latch, reverse it, reinsert, and replace the screw.

With the Fullex XL 2+2 multipoint door lock, you can trust in a product designed for maximum security and ease of use.
