Product Overview: Fullex XL Gearboxes

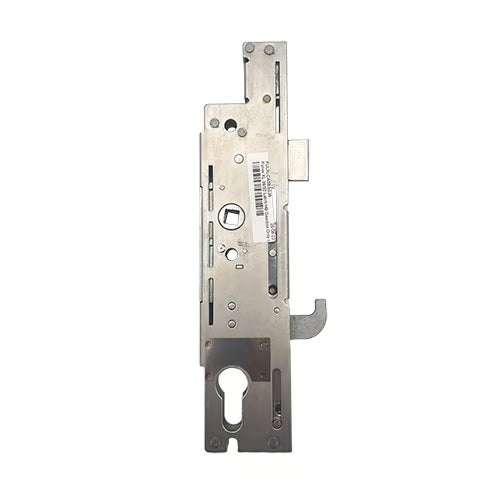

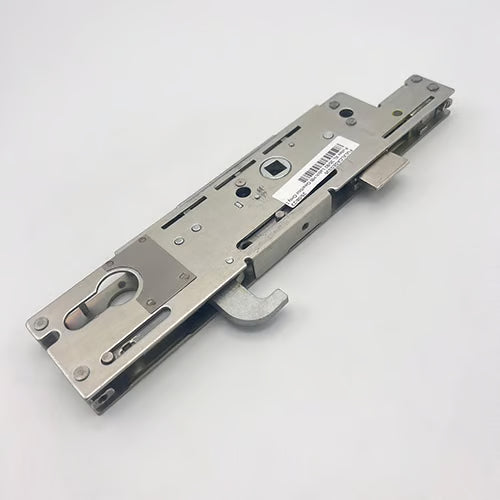

Fullex XL gearboxes are designed for versatility and security, available in both 35mm and 45mm backsets. They come in single, double, and split spindle configurations, maintaining consistent dimensions across all models. Each gearbox measures 227mm in height, with an added 15mm based on the backset.

Key Features:

• Dimensions: 227mm high + backset (35mm or 45mm) + 15mm
• Screw Attachment: Three equidistant screws for secure installation
  • Middle screw positioned 108mm from both the top and bottom screws
• Hook Mechanism:
  • Upward-throwing hook made from Dacromet coated A3 sintered steel
  • Approximately 23mm high
• Snib Feature: Located on the faceplate to hold back the latch

Associated Products:

We offer a comprehensive range of products compatible with Fullex XL gearboxes, including:

• Multipoint door locks
• Keeps
• Spindles
• Handles
• Accessories

Locking and Unlocking Instructions:

To Lock the Door:

1. Close the door to automatically engage the latch.
2. Lift the handle to engage additional locking points.
3. Throw the deadbolt and secure the system by turning the key (note: on some brands, lifting the handle will throw the deadbolt).

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle down to disengage the locking points.
3. A further quarter turn of the key will retract the latch.

With Fullex XL gearboxes, you can ensure robust security and ease of use for your doors.

Product Specification

Manufacturer: Fullex

Backset: 35mm - How do I measure the backset?
To measure the backset, close the door and measure the distance from the edge of the door to the center of the keyhole or cylinder. This measurement will give you the backset size.

Centres PZ: 92mm - How do I measure the centres?
To measure the centres, find the distance between the center of the keyhole (or cylinder) and the center of the handle spindle hole. This is typically measured in millimeters and is crucial for ensuring proper alignment of the locking mechanism.

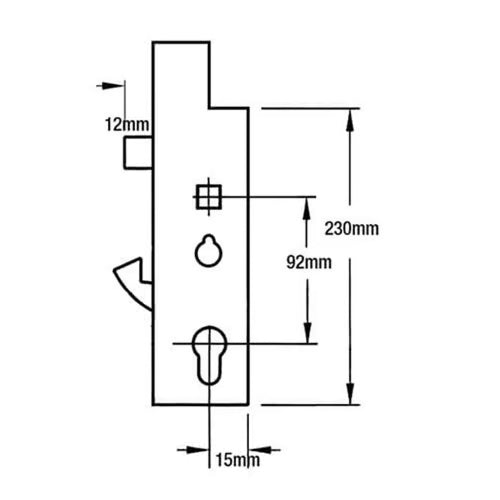

Case Height: 230mm

Case Width: 50mm

Copy/Genuine: Genuine

Cylinder Type: Euro

Handing: Not Handed

Main Gearbox: Latch & hookbolt

Spindle: Split 8mm

Operation: Split spindle - What is the operation?
The split spindle operation allows the handle to operate independently from the locking mechanism. This means that turning the handle will not engage the lock, providing flexibility in door operation, especially in situations where you may want to keep the door secure while still allowing for easy access.

Packaging: Supplied in singles
