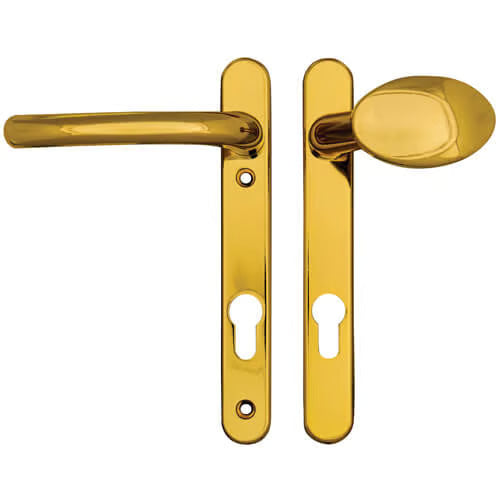

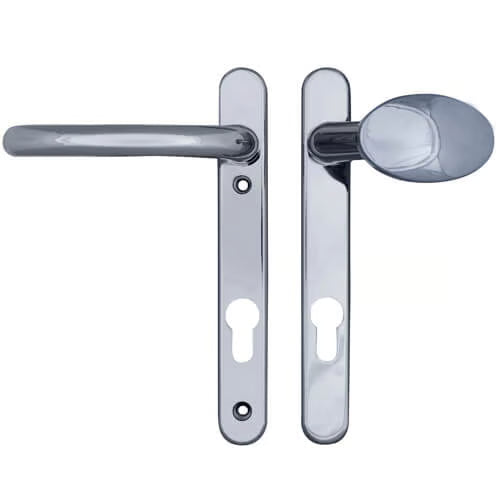

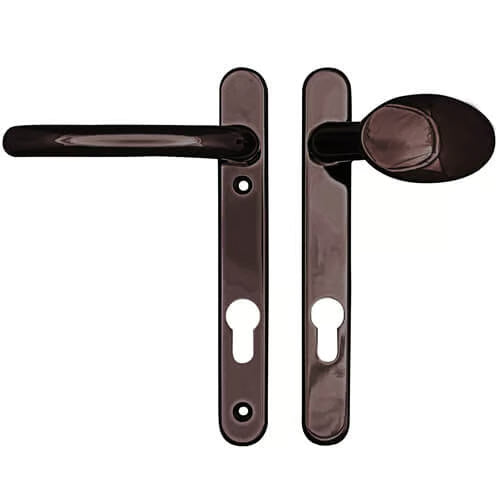

Windsor Lever Moveable Pad UPVC Multipoint Door Handles - 92mm PZ Sprung 122mm Screw Centres

Product Overview

Introducing the Fab & Fix handles from the Windsor range, designed for both functionality and style. These handles feature a sprung 92pz internal lever handle paired with an external moveable pad, ensuring ease of use and durability.

Key Features

• Dimensions: Backplate measures 205mm x 28mm
• Corrosion Resistance: Meets BS EN 1670:2007 Grade 5 standards (480 hours)
• Fixing Details:
  • Screw distance: 122mm
  • Bottom screw positioned 23mm below the euro profile cut-out
• Included: Supplied as a pair with 2 color-coordinated screws
• Spindle Options:
  • Solid spindle: TSSSPIN8
  • Split spindle: V-SPLITSPIN (to be ordered separately)

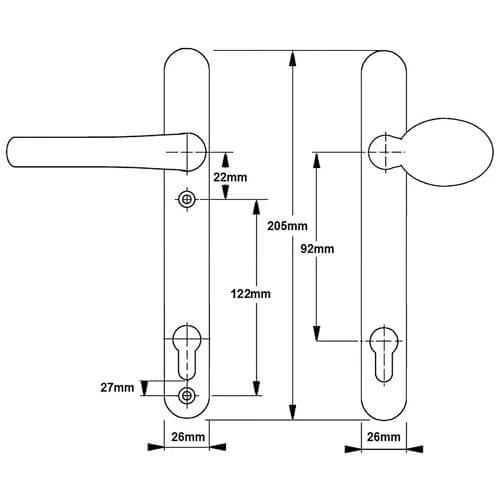

Product Specification

• Type: Sprung
• Length: 205mm
• Width: 28mm
• Centres (PZ): 92mm
• Screw Centres: 122mm
• Base of Euro to Bottom Screw: 23mm
• Top Screw to Spindle: 22mm
• Packaging: Non-handed and polybagged

Elevate your door hardware with these stylish and robust handles, perfect for any modern setting.
