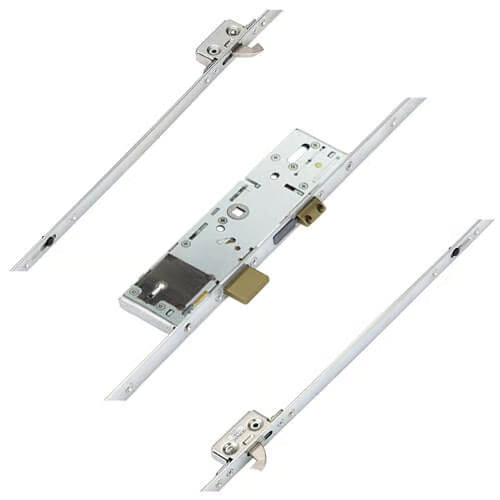

Product Overview: ERA Vectis Deadbolt Multipoint Door Lock
The ERA Vectis Deadbolt multipoint door lock is designed for enhanced security and ease of use, featuring a robust configuration of 2 hooks, 1 deadbolt, and 1 latch. This lock is ideal for both timber and composite doors, ensuring reliable protection for your property.
Identifying Your Lock
Identifying an ERA Vectis lock can be straightforward, but be cautious of rebranded versions. Look for the following key indicators:
-
Key Type: If your lock uses a 5 lever mortice key or has a UK keyhole, it is likely an ERA Vectis.
-
Holdback Snib: The snib color can help identify the lock; typically grey for deadbolt and hook bolt locks, and blue for Vectis locks. Note that some brands may have different colors.
-
Historical Reference: ERA locks may sometimes be referred to as Saracen, a nod to their origins in the double glazing industry.
Lock Features
All ERA Vectis locks come with a split spindle mechanism, simplifying replacements by focusing on a single locking function. They share levers with the British Standard ERA Fortress mortice lock, allowing for key-alike configurations with traditional mortice locks.
Gearbox Specifications
The distinctive square design of the ERA Vectis gearbox, measuring 221mm in length, is a hallmark of its construction. The backset options are available in 35mm or 45mm, with all gearboxes maintaining consistent dimensions.
-
Latch and Deadbolt Heights: The latch is 24mm high, while the deadbolt stands at 30mm, with a spacing of 61mm between them.
-
Screw Configuration: The gearbox is secured with four screws, with specific measurements between each screw hole.
Hook Locking Arrangements
ERA multipoint locks feature two hook types:
-
Standard Hook: Compact design suitable for tight routing during replacements.
-
Security Steel Hook: Larger hook case for enhanced security, which may require door modifications for installation.
Both hooks operate bi-directionally, providing superior locking capabilities.
Deadbolt Operation
The deadbolt, or linear bolt, has an 18mm throw and is designed to pull the door snugly against the frame.
Locking and Unlocking Procedure
To lock the door:
- Lift the handle to engage the locking points.
- Turn the key to secure the deadbolt and locking points.
To unlock the door:
- Turn the key to disengage the lock.
- Push the handle down to retract the latch.
Compliance and Testing
The ERA Vectis lock meets BS EN 1670:2007 Grade 4 for corrosion resistance and has been endurance tested for 50,000 cycles, ensuring long-lasting performance. It is designed to comply with PAS24:2012 standards for security.
Associated Products
We offer a range of accessories for the ERA Vectis Deadbolt multipoint door locks, including keeps, spindles, handles, and more, to ensure you have everything you need for installation and maintenance.
Product Specifications
- Manufacturer: ERA
- Backset: Selectable
- Centres PZ: 92mm
- Faceplate: Selectable
- Spindle Size: 8mm
- Hooks: 2
- Deadbolts: 1
- Latch: 1
- Operation: Selectable
- Spindle: Split 8mm
- Handing: Non-handed
- Distance Between Inner Locking: 1380mm
- Height: 2100mm
- Top Hook to Spindle: 680mm
- Bottom Hook to Spindle: 700mm
- Door Material: Timber, Composite
