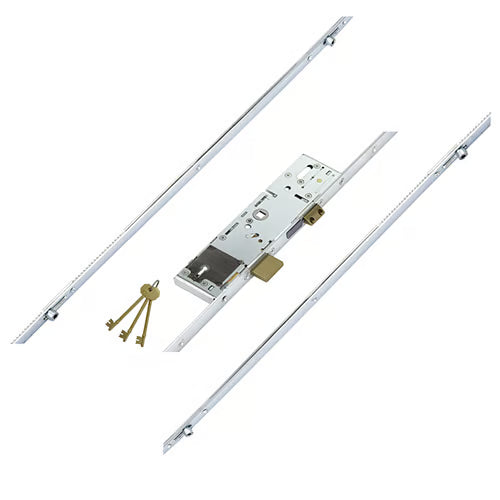

Product Overview: ERA Vectis Deadbolt Multipoint Door Lock
The ERA Vectis Deadbolt multipoint door lock is designed for enhanced security and ease of use, featuring a robust configuration of 4 rollers, 1 deadbolt, and 1 latch. This lock is ideal for various door types, including UPVC and aluminum, ensuring a reliable locking mechanism for your home or business.
Key Features:
-
Multipoint Locking System: Incorporates a latch, deadbolt, and 4 rollers for comprehensive security.
-
Identification Tips:
- Look for a 5 lever mortice lock key or a UK keyhole to confirm it's an ERA Vectis.
- The holdback snib on the faceplate is typically grey for deadbolt and hook bolt locks, and blue for Vectis locks, although some brands may vary in color.
-
Split Spindle Mechanism: Simplifies replacements by focusing on one locking function.
-
Compatibility: Can be keyed alike with the British Standard ERA Fortress mortice lock, allowing for seamless integration with existing security systems.
-
Distinctive Gearbox Design: Features a square design with no corner cutouts, measuring 221mm in length and accommodating a traditional mortice key.
Specifications:
-
Backset Options: Available in 35mm or 45mm (with regular ERA gearboxes also available in 30mm).
-
Gearbox Dimensions:
- Latch height: 24mm
- Deadbolt height: 30mm
- Distance between latch and deadbolt: 61mm
-
Locking Mechanism:
- To lock: Lift the handle and turn the key.
- To unlock: Turn the key and push the handle down.
-
Corrosion Resistance: Meets BS EN 1670:2007 Grade 4 standards, ensuring durability against the elements.
-
Endurance Testing: Rated for 50,000 cycles, demonstrating reliability over time.
Installation and Maintenance:
-
Latch Reversal: Easily reversible by unscrewing, flipping, and reinserting the latch.
-
Roller Adjustment: Rollers can be adjusted by +/- 1mm for optimal weather sealing.
Associated Products:
We offer a range of accessories for the ERA Vectis Deadbolt multipoint door locks, including keeps, spindles, handles, and more, ensuring you have everything needed for a complete installation.
For any specific requirements or customizations, please contact us, and we will assist you in building the perfect lock solution tailored to your needs.
