Vectis Latch Deadbolt 2 Rollers 2 Hooks Split Spindle Multipoint Door Lock

V52350019AA-UDF

£169.42

Taxes included. Shipping calculated at checkout.

↩️ Free Returns: Simple returns for complete peace of mind.

🚚 Free Delivery: On orders over £75 inc VAT*

📦 2–3 Day Delivery: Fast and reliable delivery on your order.

Description

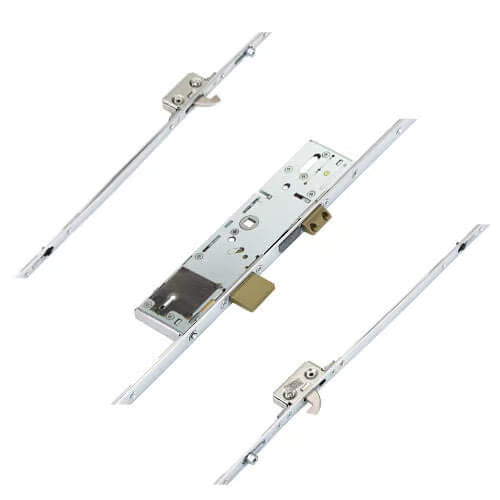

Product Overview: ERA Vectis Deadbolt Multipoint Door Lock

The ERA Vectis Deadbolt multipoint door lock is engineered for security and convenience, featuring a robust design that includes 2 rollers, 2 hooks, 1 deadbolt, and 1 latch. This lock is supplied with a 5 lever gearbox and comes with 2 mortice keys, ensuring reliable access control.

Key Features:

Enhanced Security: The design prevents snapping as it does not require a cylinder, making it a secure choice for homeowners.
Versatile Branding: ERA locks may be stamped with various brands such as Homesafe, Surelock, and more, but they maintain consistent quality and performance.
Easy Identification: Look for a 5 lever mortice lock key or a UK keyhole to confirm it’s an ERA Vectis. The holdback snib color can also help identify the lock, typically grey for deadbolt and hook bolt locks, and blue for Vectis locks.
Split Spindle Mechanism: This feature simplifies replacements, focusing on one locking function for ease of use.
Compatibility: The levers are compatible with the British Standard ERA Fortress mortice lock, allowing for key-alike options with traditional timber doors.

Installation and Measurement:

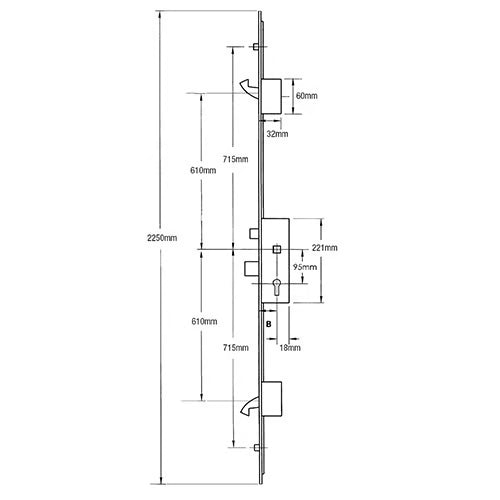

To accurately identify and install the ERA Vectis lock, it is recommended to remove the multipoint from the door. The distinctive square design of the gearbox, measuring 221mm in length, is a key identifier. The lock is available in 35mm or 45mm backsets, with all gearboxes sharing the same dimensions.

Locking Mechanism:

Operation: The split spindle mechanism allows for straightforward locking and unlocking.
Locking Process:
1. Lift the handle to engage the locking points.
2. Turn the key to secure the deadbolt and locking points.
Unlocking Process:
1. Turn the key to unlock.
2. Push the handle down to disengage the locking points.

Durability and Compliance:

The ERA Vectis lock meets BS EN 1670:2007 Grade 4 Corrosion Resistance standards and has been endurance tested for 50,000 cycles. It is designed to comply with PAS24:2012 requirements, ensuring it meets high security standards.

Additional Products:

We offer a range of associated products for the ERA Vectis Deadbolt multipoint door locks, including keeps, spindles, handles, and accessories, to ensure you have everything needed for a complete installation.

Latch Reversal:

For latch reversal, simply undo the screws, reverse the latch, reinsert, and replace the screws.

Applications:

This lock is suitable for use in UPVC and aluminium doors, providing a versatile solution for various door types.

Product Specifications:
