Product Information

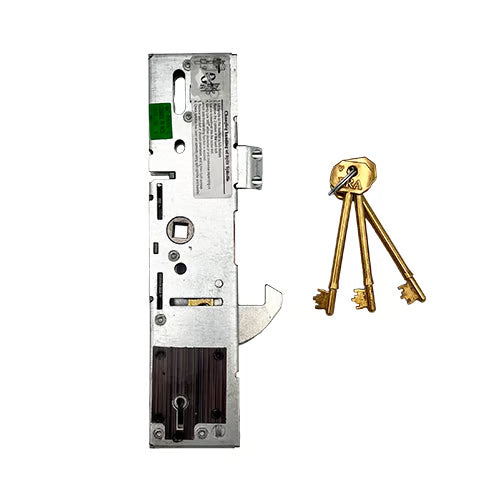

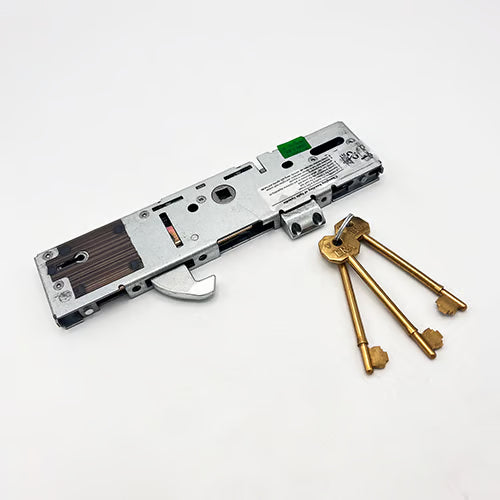

Introducing the ERA Vectis Hook Bolt Genuine Gearbox, designed for durability and versatility. This gearbox features a split spindle, with 92mm centres and a 35mm backset, making it an ideal choice for various door applications.
The Vectis cases are interchangeable with any ERA multipoint lock, allowing for seamless mortice locking. Each unit comes with three keys (Genuine Key Blank: 611V), ensuring you have the necessary access.
Notably, the ERA Vectis multipoint door lock gearboxes boast a distinctive square design without corner cut-outs. The UK keyway is specifically crafted to accommodate a traditional mortice key. The overall dimensions of the gearbox are 221mm in length and the width is the backset plus 18mm.
Available in 35mm or 45mm backsets, all ERA gearboxes maintain consistent dimensions. They can be equipped with a classic deadbolt, a standard euro cut-out, an Invincible cylinder cut-out, or a Vectis 5 lever mechanism. Choose between a deadbolt or a hook bolt that throws upward. For enhanced security, consider the British Standard Fortress invincible gearbox, which includes hardened drill plates.
With the exception of the British Standard Fortress lock, all ERA gearboxes are interchangeable. If your client requires a hook lock instead of a deadbolt or a Vectis locking multipoint door lock, reach out to us, and we’ll customize the lock to meet their needs.
ERA multipoint door lock gearboxes feature a 24mm high latch (with two distinctive screws), a 30mm high deadbolt, and a spacing of 61mm between them. Uniquely, these gearboxes are secured to the faceplate with four screws. The measurements between the screw holes are as follows: 37mm from the first to the second, 85mm from the second to the third, and 43mm from the third to the fourth.
When measuring the backset, remember to account for 2-3mm for the faceplate. Thus, a 35mm backset gearbox will measure approximately 32mm when not affixed to the strip.
We also offer a comprehensive range of associated products for ERA Vectis Hook Bolt gearboxes, including multipoint door locks, keeps, spindles, handles, and accessories.
Operation Instructions
To Lock the Door:
- Close the door to automatically engage the latch.
- Lift the handle to engage the additional locking points.
- Throw the deadbolt and secure the system by turning the key (on some brands, lifting the handle will throw the deadbolt).
To Unlock the Door:
- Unlock the system by turning the key.
- Push the handle down to disengage the locking points.
- A further quarter turn of the key will retract the latch.
Product Specification
- Manufacturer: ERA
- Backset: 35mm (How to measure the backset?)
- Centres PZ: 92mm (How to measure the centres?)
- Case Height: 220mm
- Case Width: 55mm
- Copy/Genuine: Genuine
- Cylinder Type: UK
- Handing: Not Handed
- Main Gearbox: Latch & Hookbolt
- Spindle: Split 8mm
- Operation: Lift Lever or Split Spindle Nightlatch (What is the operation?)
- Packaging: Supplied in singles
