Description

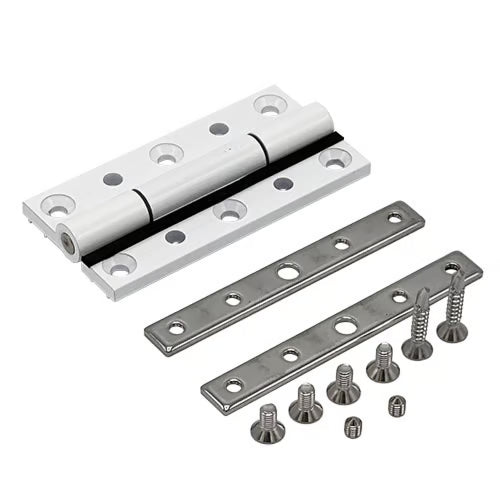

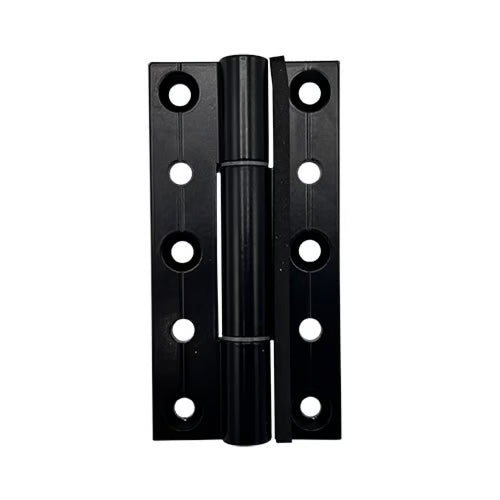

Introducing our high-quality hinge designed specifically for Debar bi-fold doors, offering a seamless and efficient solution for your door installation needs.
Product Information
This hinge is crafted without a pull handle, ensuring a sleek and unobtrusive appearance while maintaining functionality.
Product Specification
- Hinge Height: 97mm
- Hinge Width When Open: 49mm
- Diameter of Knuckle: 12.5mm
- Fixing Holes: 5
- Countersunk Fixing Holes: 3
- Top to Bottom Fixing Hole: 80mm
- Top to Middle Fixing Hole: 40mm
- Middle to Bottom Fixing Hole: 40mm
- 2nd to 4th Fixing Hole: 40mm
- Screw Width Centres: 34mm
This hinge is engineered for durability and ease of installation, making it an ideal choice for your bi-fold door projects.
