Description
Product Information

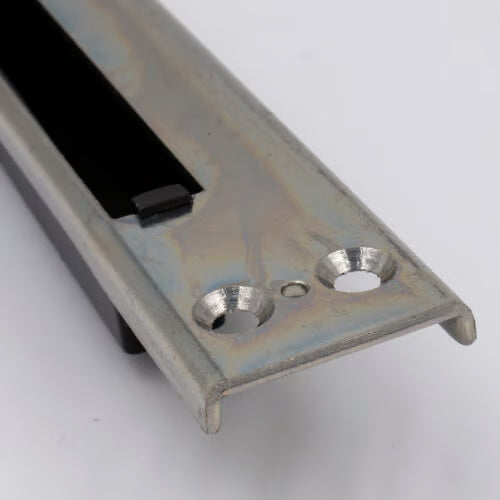

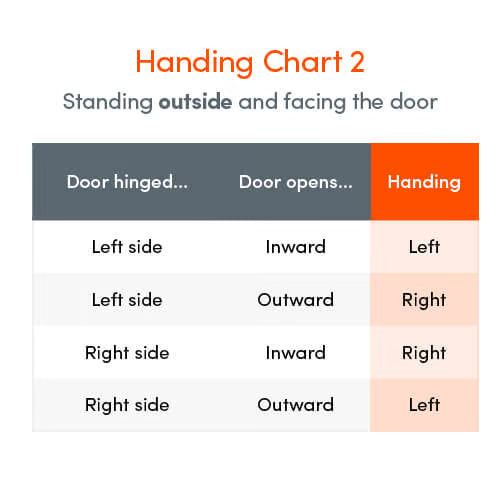

A universal latch and deadbolt centre keep suitable for a range of multipoint locks. Please note there are left and right options; see the handing charts to ensure the correct hand is chosen.
Product Specification
- Type: Latch & deadbolt strike
- Length: 225mm
- Width: 30mm
- Depth: 7mm
- Fixing centres: 200mm top to bottom
- Distance between latch and deadbolt: 40mm
- Size of latch receiver: 40mm x 14mm
- Size of deadbolt receiver: 62mm x 10mm
