Description
Product Information

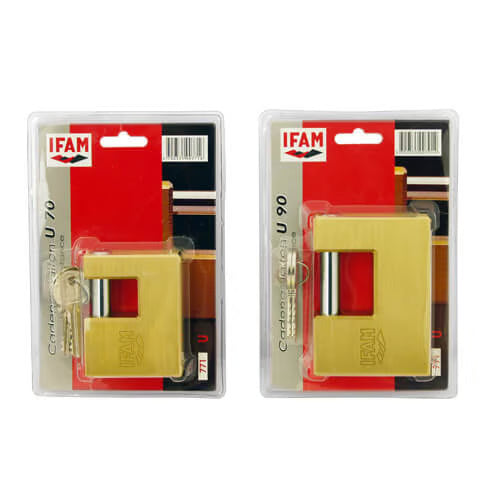

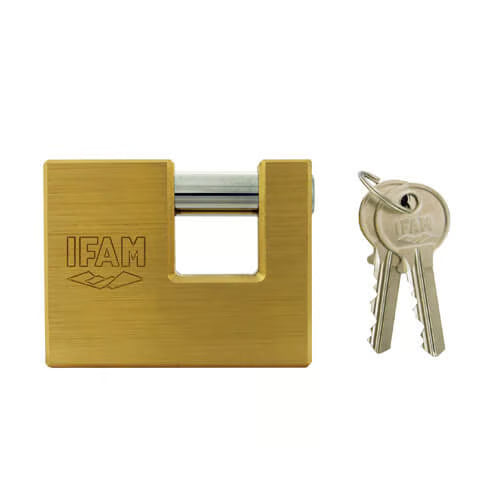

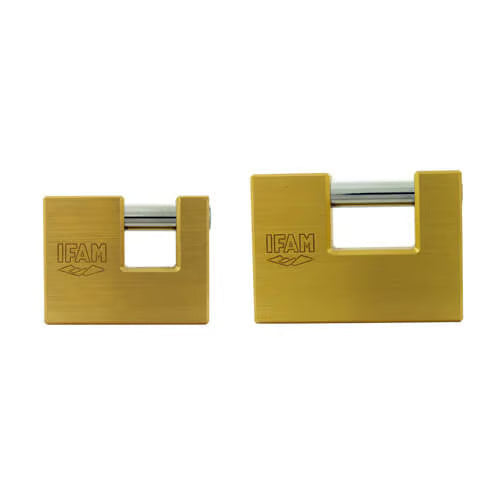

Available in two sizes (70mm and 90mm), the U Series security padlocks from IFAM are specifically designed for vertical grille type closures and shutters. They can also be used with H14 and M10 chains from IFAM and include key profiles that are compatible with the cylinders, rim locks, and other padlocks from the brand.
Product Specification
- Opening / Locking: Ball bearing locking system. Key retention system when the padlock is open.
| Specification | U70 Padlock | U90 Padlock |
|---|---|---|
| Body Base (A) | 70mm | 90mm |
| Body Height (B) | 55mm | 64.5mm |
| Shackle Height (C) | 15.5mm | 17.5mm |
| Shackle Diameter (D) | 12mm | 12mm |
| Distance from Base to Shackle Base (E) | 24mm | 31.4mm |
| Body Thickness (F) | 20mm | 20mm |
| Shackle Span (M) | 22mm | 36mm |
| Large Flap Length (N) | 34mm | 34mm |
| Short Flap Length (L) | 14mm | 20mm |
Features:
- Comes with 2 keys
- Key retaining mechanism
- Automatic locking feature
- Key positioned opposite end to bolt
- Solid extruded brass body with carbon nitride hardened shackle
- Ball bearing locking mechanism
- Keyed alike versions available on ongoing numbers
- Visi-packed for visibility
- Boxed for keyed alike version
This padlock series combines durability and security, making it an ideal choice for various applications.
