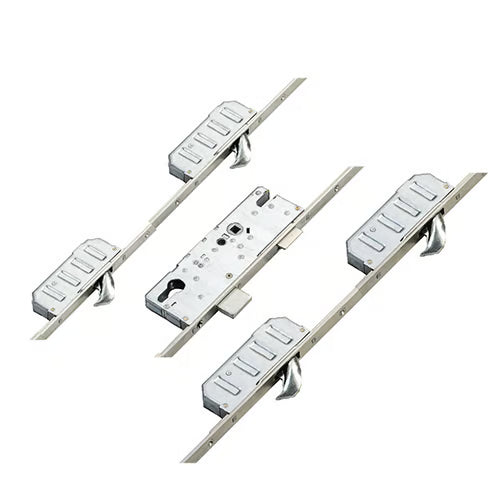

Winkhaus Trulock Multipoint Door Lock
The Winkhaus Trulock multipoint door lock is designed for enhanced security and durability, featuring a robust configuration of 4 hooks, 1 deadbolt, and 1 latch. This locking system is ideal for timber and composite doors, particularly in social housing and new build projects.
Key Features:
-
Multi-Point Locking System: The Trulock system includes a central latch and deadbolt, complemented by either 2 or 4 hook locking points, ensuring maximum security.
-
Handed Hook Locking Points: Trulocks are equipped with handed hooks that cannot be reversed on-site, providing a tailored fit for your door.
-
Easy Identification: Look for the Winkhaus logo and the Secured by Design logo on the faceplate. The Trulock version is identifiable by its central deadbolt and handed hooks.
-
Interchangeable Gearboxes: The Trulock gearboxes share routing details with Cobra locks, allowing for easy upgrades or changes in locking operation.
-
Compact Design: All Winkhaus gearboxes, except the AV4, measure 185mm high with a backset of +15mm, making them the smallest on the market.
Operation Instructions:
To lock the door:
- Lift the handle upwards to engage the locking points.
- Turn the key to secure the locking points and the main deadbolt.
To unlock the door:
- Turn the key to unlock the system.
- Push the handle downwards to disengage the locking points and retract the latch.
Specifications:
- Manufacturer: Winkhaus
- Backset: Select from drop-down
- Centres PZ: 92mm
- Faceplate: Select from drop-down
- Spindle Size: 8mm
- Hooks: 4
- Deadbolts: 1
- Latch: 1
- Main Gearbox: Latch & deadbolt
- Operation: Select from drop-down
- Spindle: Split 8mm
- Handing: Left Hand
- Distance Between Inner Locking: 1490mm
- Distance Between Outer Locking: 780mm
- Height: 2100mm
- Top Hook to Spindle: 720mm
- Bottom Hook to Spindle: 770mm
Additional Information:
Winkhaus Trulocks are rigorously tested to 100,000 cycles and are available in various configurations, including UPVC, aluminium, timber, and composite door locks. We also offer a range of associated products such as keeps, spindles, handles, and accessories to complement your Winkhaus Trulock multipoint door lock.
For any further assistance or to explore our product range, please refer to our guides and videos on installation and replacement.
