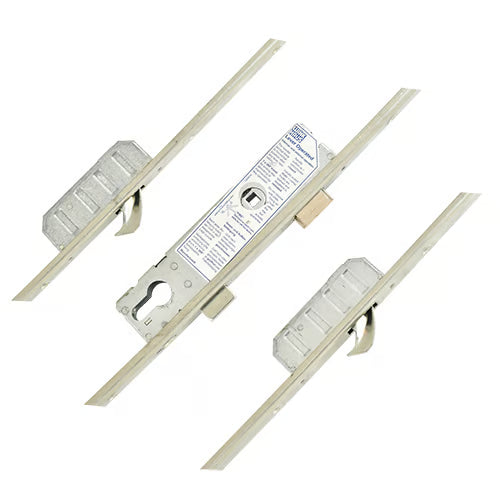

Winkhaus Trulock Multipoint Door Lock Overview
The Winkhaus Trulock multipoint door lock is designed for enhanced security and functionality, featuring a robust configuration of 2 hooks, 1 deadbolt, and 1 latch. This lock is ideal for timber and composite doors, particularly in social housing and new build projects.
Key Features
-
Multipoint Locking System: Offers a central latch and deadbolt, complemented by 2 or more hook locking points for superior security.
-
Operation Options: Available in lift lever operation, split spindle, or key wind, providing flexibility based on user preference.
-
Handed Hooks: Trulocks are equipped with handed hook locking points, ensuring a precise fit that cannot be reversed on-site.
-
Identification: Easily identifiable by the Winkhaus logo on the faceplate and the central deadbolt configuration. Look for the Secured by Design logo for added assurance.
Gearbox Specifications
-
Compact Design: All Winkhaus gearboxes (except AV4) measure 185mm high with a backset of +15mm, making them the smallest in the market.
-
Interchangeability: Trulock gearboxes share routing details with Cobra locks, allowing for straightforward upgrades or changes in locking operation.
-
Rivet Attachment: Gearboxes are uniquely attached to the faceplate with rivets, simplifying the replacement process.
Operation Instructions
To lock the door:
- Lift the handle to engage the locking points.
- Turn the key to secure the locking points and the main deadbolt.
To unlock the door:
- Turn the key to unlock the system.
- Push the handle down to disengage the locking points and retract the latch.
Security Assurance
- Secured by Design: The Trulock has been rigorously tested to withstand 100,000 cycles, ensuring durability and reliability.
Product Compatibility
The Winkhaus Trulock can be utilized across various door types, including UPVC, aluminum, timber, and composite doors.
Handing Charts
-
Standing Outside:
- Left Hinged, Inward: Right Hand
- Left Hinged, Outward: Left Hand
- Right Hinged, Inward: Left Hand
- Right Hinged, Outward: Right Hand
-
Standing Inside:
- Right Hinged, Inward: Right Hand
- Right Hinged, Outward: Left Hand
- Left Hinged, Inward: Left Hand
- Left Hinged, Outward: Right Hand

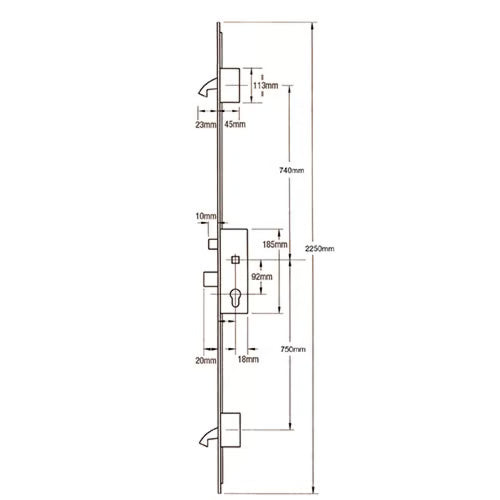

Product Specifications
- Manufacturer: Winkhaus
- Backset: Select from drop-down
- Centres PZ: 92mm
- Faceplate: Select from drop-down
- Spindle Size: 8mm
- Hooks: 2
- Deadbolts: 1
- Latch: 1
- Main Gearbox: Latch & deadbolt
- Operation: Select from drop-down
- Spindle: Single 8mm
- Handing: Left Hand
- Distance Between Inner Locking: 1490mm
- Height: 2250mm
- Top Hook to Spindle: 740mm
- Bottom Hook to Spindle: 750mm
