Description
Product Information

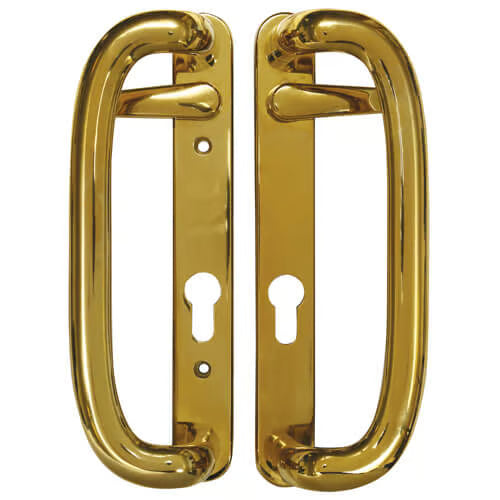

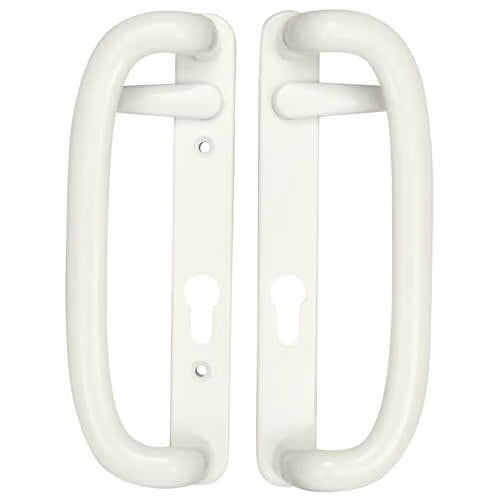

Mila Trinity Patio Handle Set
Product Specification
- As the patio door slides across, the locating pin will engage, activating the patio lever.
- Once activated, throw the patio lever to engage the locking points.

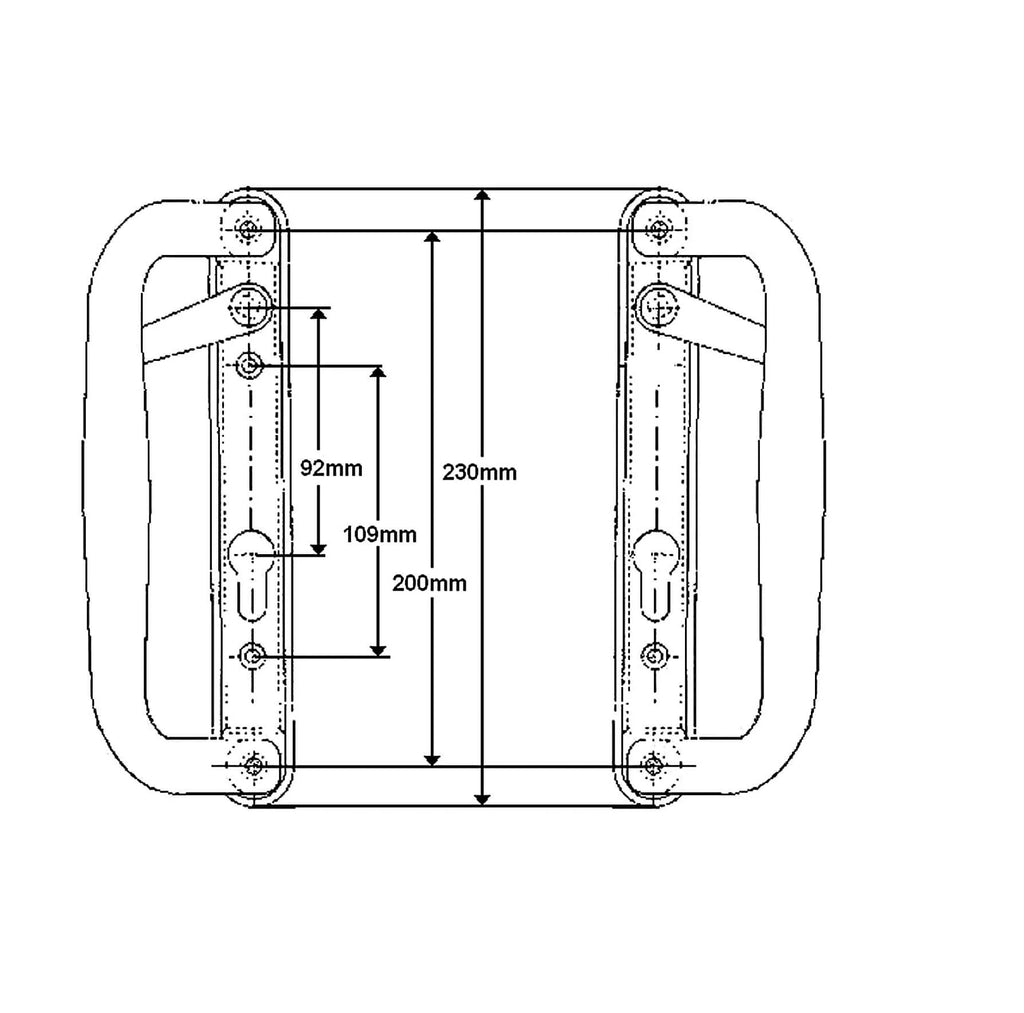

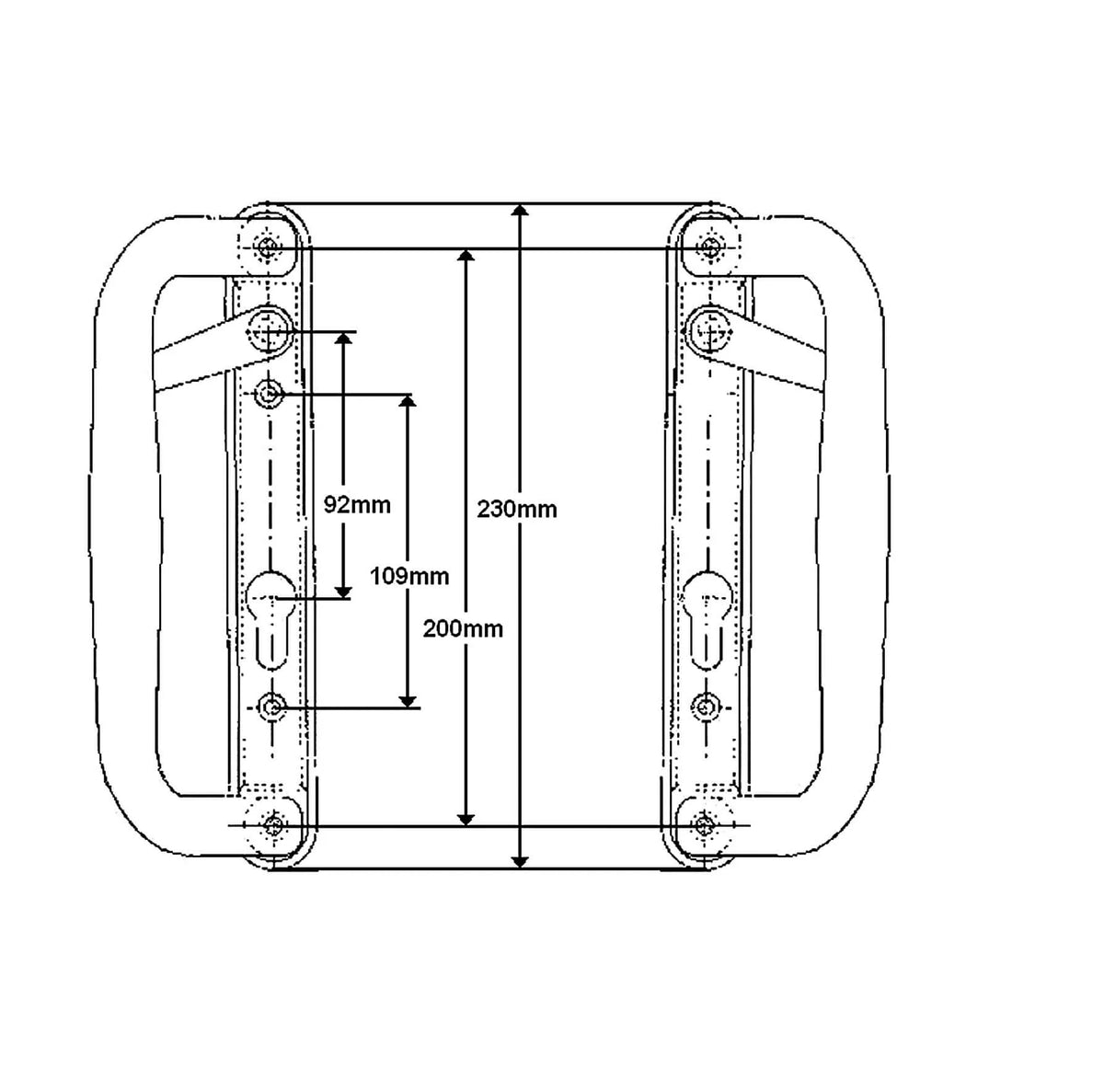

Dimensions
- Length: 230mm
- Backplate Width: 30mm
- Screw Centres: 109mm
- Bottom screw to centre of Euro: 40mm
- Top screw to centre of Euro: 75mm
- Centres/PZ: 92mm
- Lever: 7mm diameter metal spindle
Included
- Supplied with fixing screws and spindle.
- Will suit: Mila FLIPEW and FLIPEG patio locks.
- Supplied in pairs.
