Description
Product Information

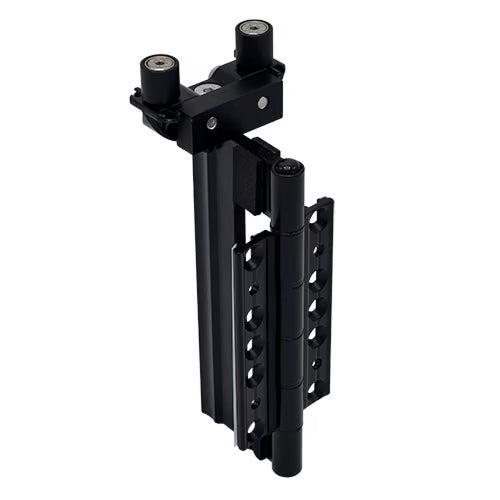

This top guide assembly is essential for bi-fold door installations, providing support above the roller where two hinged door leaves meet in the running track. It works seamlessly with the bifold roller to ensure that the door panels move smoothly and remain securely in place within the track.

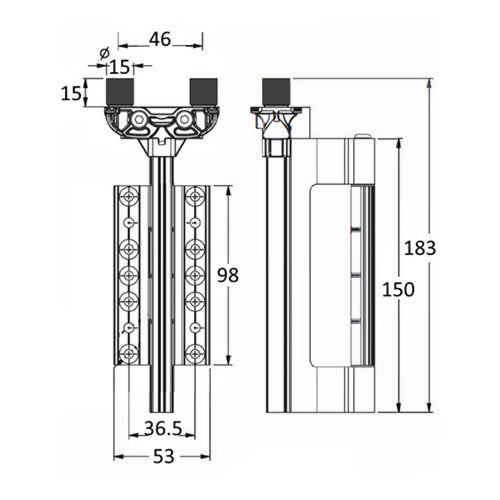

Product Specification
- Part Type: Top Guide
- Overall Height: 183mm
- Handle Height: 150mm
- Roller Height: 28mm
- Hinge Height: 98mm
- Hinge Width (when open): 53mm
- Diameter of Knuckle: 13mm
- Hinge Screw Centres: 36mm
- Fixing Holes: 5
- Countersunk Fixing Holes: 3
- Top to Bottom Fixing Hole: 85mm
- Top to Middle Fixing Hole: 42.5mm
- Middle to Bottom Fixing Hole: 42.5mm
- 2nd to 4th Fixing Hole: 57mm
- 3rd to 5th Fixing Hole: 28mm
- Roller Height: 13.5mm
- Roller Diameter: 15mm
- Roller Centres: 46mm
This assembly is designed for durability and ease of installation, making it a reliable choice for your bi-fold door needs.
