Description
Introducing the Tokyo Range Hoppe Handles – where security meets style!
These handles are designed with an enhanced security standard, rigorously tested to meet PAS 24 requirements. The external handle boasts a hardened steel cylinder cover, ensuring a robust cylinder projection of 10-18mm. With sprung internal and external levers, these handles provide both functionality and elegance.
Key Features:
-
Dimensions: Backplate size of 240mm x 35mm, with a screw distance of 215mm and the bottom screw positioned 23mm below the euro profile cut-out.
-
Versatile Finishes: Available in gold, silver, white, and polished chrome, each option comes with color-coordinated M6 screws and an M10 security fixing bolt tailored for door thicknesses of 70mm (gold, silver, white) or 44mm (polished chrome).
-

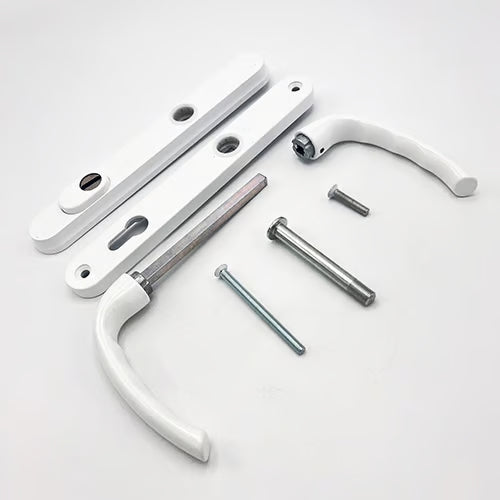

Complete Package: Supplied as a pair, these handles come with spring cassettes and an 8mm square spindle for easy installation.

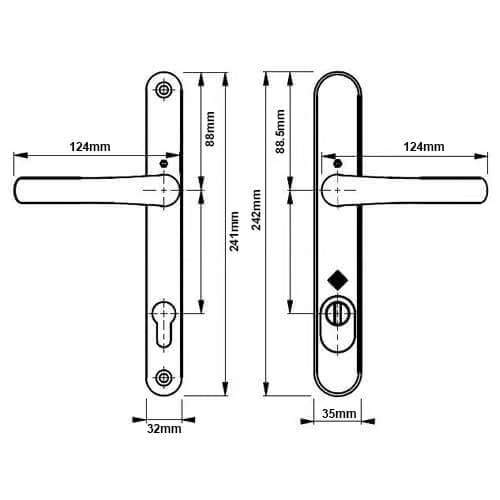

Product Specifications:
- Type: Sprung (3259N-ZA/3633N) backplate
- Length: 242mm
- Width: 35mm (external), 32mm (internal)
- Centres (PZ): 92mm
- Screw Centres: 215mm
- Base of Euro to Bottom Screw: 23mm
- Top Screw to Spindle: 75mm
- PAS 24 Certified
- Non-handed Design
- Boxed for Protection
Elevate your door hardware with the Tokyo Range Hoppe Handles, combining security, durability, and aesthetic appeal!
