Description
Product Overview
Introducing the Hoppe handles from the Tokyo range, designed for both internal and external use. These handles feature a robust sprung mechanism with a 92pz lever system, ensuring smooth operation and durability.
Key Features
- Backplate Size: 240mm, available in a variety of finishes to match your decor.
- Screw Fixing Distance: 215mm, with the bottom screw positioned 23mm below the euro profile cut-out for easy installation.

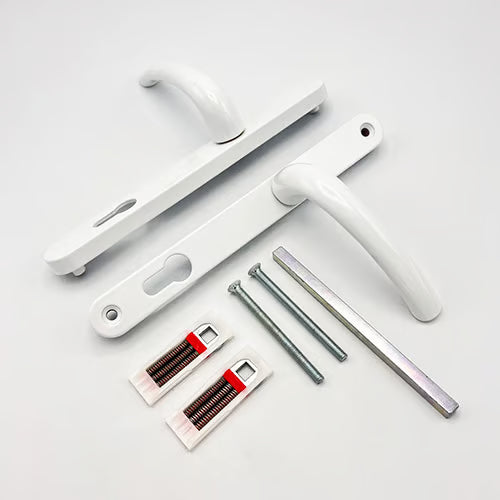

- Complete Set: Supplied as a pair, including spring cassettes, an 8mm square spindle, and two color-coordinated M6 screws suitable for door thicknesses of 62-71mm.

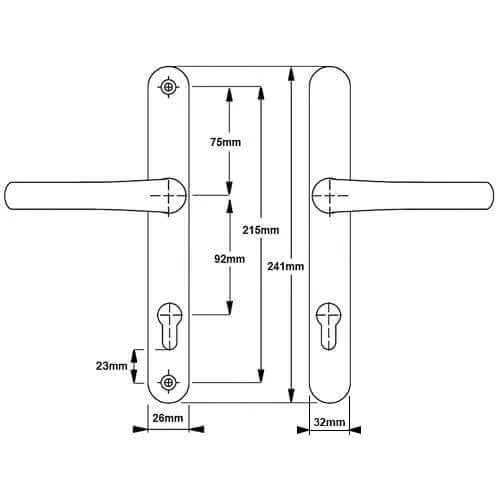

Product Specifications
- Type: Sprung
- Backplate Type: 3(633N/3623N)
- Length: 240mm
- Width: 32mm (Note: Original 26mm/32mm version is now obsolete)
- Centres (PZ): 92mm
- Screw Centres: 215mm
- Distance from Euro to Bottom Screw: 23mm
- Distance from Top Screw to Spindle: 75mm
- Included: Spindle and screws
- Configuration: Supplied as a pair, non-handed
- Packaging: Polybagged for protection during transit
Elevate your door hardware with the stylish and functional Hoppe handles from the Tokyo range!
