Description
Product Overview

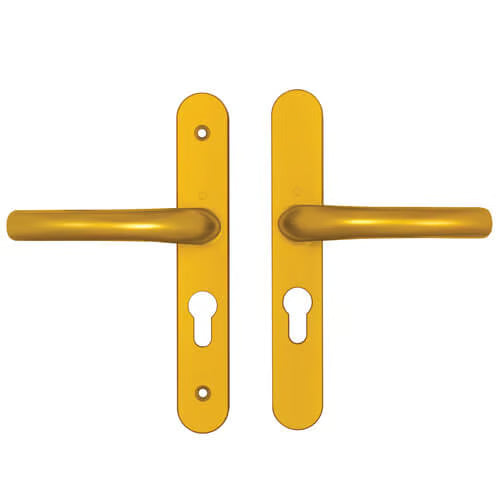

Introducing the Hoppe handles from the Tokyo range, designed for both internal and external use. These handles feature a sprung mechanism with a 48pz configuration, ensuring smooth operation and durability.
Key Features
- Backplate Dimensions: 210mm x 35mm
- Versatile Finishes: Available in a variety of finishes to match your decor
- Compatibility: Ideal for aluminium doors and compatible with Union locks such as L22180 Monarch, L22172, L22080, and L22224. Please note, they are not suitable for Union L22174 Everest or Gibbons ABT 3 point locks.
Installation Details
- Fixing Screw Distance: 160mm
- Bottom Screw Position: 30mm below the euro profile cut-out

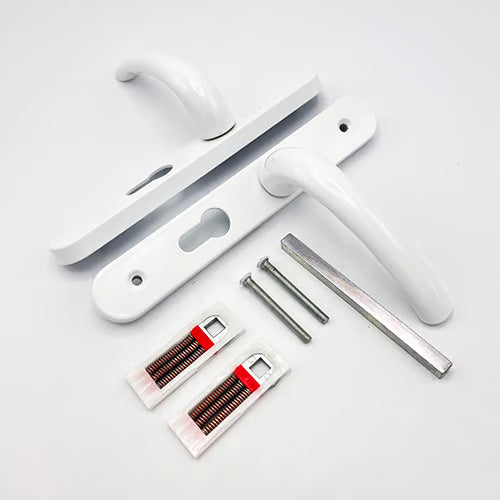

- Included Components: Supplied as a pair with spring cassettes, an 8mm square spindle, and 2 colour-coordinated M5 screws.

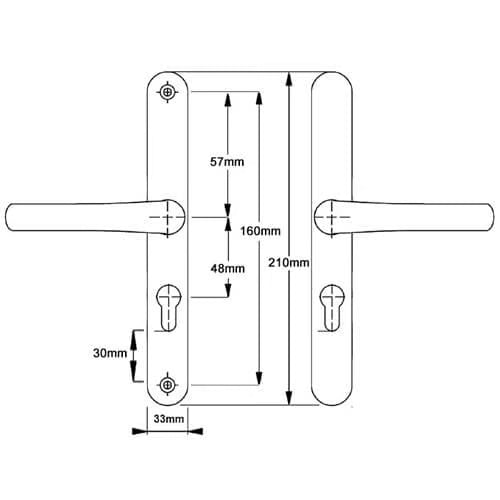

Product Specifications
- Type: Sprung
- Length: 210mm
- Width: 33mm
- Centres (PZ): 48mm
- Screw Centres: 160mm
- Distance from Euro to Bottom Screw: 30mm
- Top Screw to Spindle Distance: 57mm
- Packaging: Supplied in a polybag
These handles are non-handed, making them a flexible choice for various installations. Upgrade your doors with the stylish and functional Hoppe handles from the Tokyo range!
