Description
Product Overview

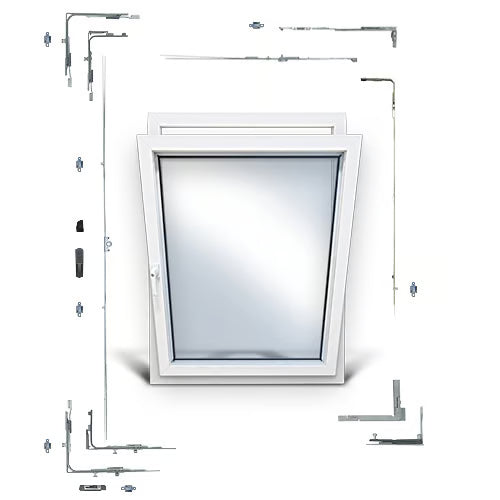

Introducing the Titan tilt before turn system from Siegenia, engineered for UPVC, timber, and aluminium windows. This innovative solution is perfect for both new installations and replacing outdated TBT systems in sash windows featuring a standard 16mm eurogroove channel.
Key Features
-
Sash Compatibility: Designed for sash rebates measuring between 1201-1600mm in height and 380-680mm in width.
-
Handing Options: Available in left or right hung configurations, accommodating both 9mm and 13mm eurogroove axes with concealed hinge fixing.
-
Drive Gear Variants: Choose from drive gears with 7mm or 15mm backsets. Ensure to check the backset of your existing drive gear if you are replacing an old system.
-
Complete Sets: Each system is supplied as a complete set tailored to specific window requirements. Verify your sash dimensions to ensure compatibility with the sash rebate width and height.
Additional Information
For a comprehensive view of all available sash rebate sets, click here.
Please note that a window handle is not included in the set. Explore our related products for recommended handle options and various finishes.
Handing Guidance
To determine the handing of your window:
-
When viewed from the inside, the handing corresponds to the side where the hinges are located.
-
If the handle is on the left and the hinges are on the right, it is classified as RIGHT HANDED.
-
Conversely, if the handle is on the right and the hinges are on the left, it is classified as LEFT HANDED.
-
Product Specifications
- Sash rebate height: 1201-1600mm
- Sash rebate width: 380-680mm
- Handing: Left & right hand variants
- Eurogroove axis options: 9mm & 13mm
- Hinge type: Concealed fixed
- Backset options: 7mm or 15mm
- Keeps: Supplied with universal, non-profile related keeps
- Fixings: Not supplied
- Window handle: Not supplied
For any further inquiries or assistance, feel free to reach out!
