Description
Product Information

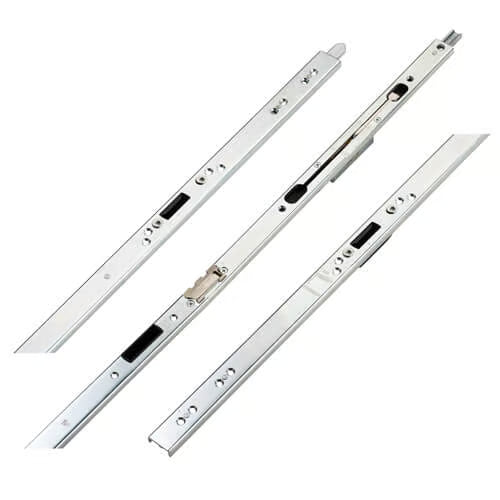

Designed to suit the Fuhr M6B6513S 2 hook composite and timber multipoint lock, this product allows the locking points to securely engage with the keep on a passive door.
Handing Charts
Standing outside looking at the door
| Standing Outside, Door Hinged | Door Opens | Handing |
|---|---|---|
| Left | Inward | Left |
| Right | Outward | Left |
| Left | Outward | Right |
| Right | Inward | Right |
Standing inside looking at the door
| Standing Inside, Door Hinged | Door Opens | Handing |
|---|---|---|
| Right | Inward | Left |
| Left | Outward | Left |
| Right | Outward | Right |
| Left | Inward | Right |
Product Specification
- Type: Passive lock keep
- Length: 2233mm
- Width: 27mm
- Depth: 10mm

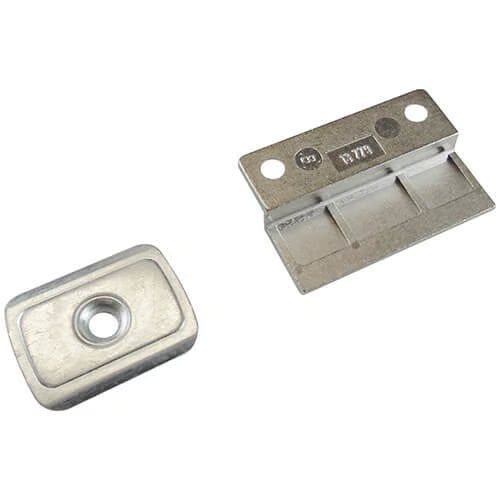

- Hook Keep Dimensions: 35mm x 10mm
- Distance between latch and deadbolt: 45mm
- Size of latch keep: 38mm x 12mm
- Size of deadbolt keep: 45mm x 10mm
