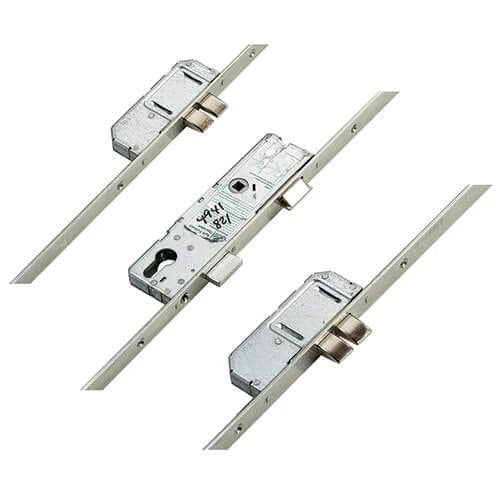

Winkhaus Thunderbolt Multipoint Door Lock
The Winkhaus Thunderbolt multipoint door lock is engineered for security and ease of installation, featuring 5 deadbolts and 1 latch. This innovative locking system is designed with increased tolerances, making it ideal for door installers.
Key Features:
-
High Security: Incorporates twin deadbolts positioned at the top and bottom, ensuring compliance with PAS23/24 and EN14351-1 2006 security standards.
-
Versatile Operation: Available in lift lever, split spindle, or key wind operation, catering to various user preferences.
-
Compatibility: Suitable for timber, composite, and PVCu doors, making it a versatile choice for different applications.
-
Easy Identification: Look for the Winkhaus logo and the Secured by Design logo on the faceplate. The Thunderbolt model is distinguished by its chamfered twin deadbolts.
-
Enhanced Fitting Tolerances: Designed to assist door manufacturers, the Thunderbolt allows for up to 50% greater fitting tolerances, accommodating variations in airgap dimensions.
Product Specifications:
- Manufacturer: Winkhaus
- Backset: Selectable from drop-down options
- Centres PZ: 92mm
- Faceplate: Selectable from drop-down options
- Spindle Size: 8mm
- Deadbolts: 5
- Latch: 1
- Main Gearbox: Latch & deadbolt
- Operation: Selectable from drop-down options
- Spindle: Split 8mm
- Handing: Non-handed
- Distance Between Inner Locking: 1490mm
- Height: 1770mm
- Top Deadbolt to Spindle: 720mm
- Bottom Deadbolt to Spindle: 770mm
Operation Instructions:
To lock the door:
- Lift the handle upwards to engage the locking points.
- Turn the key to secure the locking points and main deadbolt (if applicable).
To unlock the door:
- Turn the key to unlock the system.
- Push the handle downwards to disengage the locking points and retract the latch.
Latch Reversal:
To reverse the latch, push in the latch until a screw appears at the back of the lockcase. Undo the screw to remove the latch, reverse it, reinsert, and replace the screw.
Additional Information:
Winkhaus Thunderbolt locks are tested to 100,000 cycles and come with a range of associated products, including keeps, spindles, handles, and accessories.
