Surelock Copy Multipoint Gearbox - Lift Lever or Double Spindle

Product Information

Introducing the Old Style 05002 Case, designed for durability and ease of use.

Key Features:

• Screw Holes: Unthreaded; self-tapping screws are required for installation.

• Replacement Hook Shells: Available under Part Number: CEGOHOOK.

• Operation: Choose between a lift lever or double spindle for versatile functionality.

• Latch Reversal Instructions:

  1. Lay the multipoint lock strip on the floor with the latch and deadbolt facing left.
  2. Undo the 5 screws on the side of the case.
  3. Remove the flat positioning plate and latch clip.
  4. Twist the latch into the desired position.
  5. Reinsert the flat positioning plate and latch clip.
  6. Replace the cover and tighten the screws.

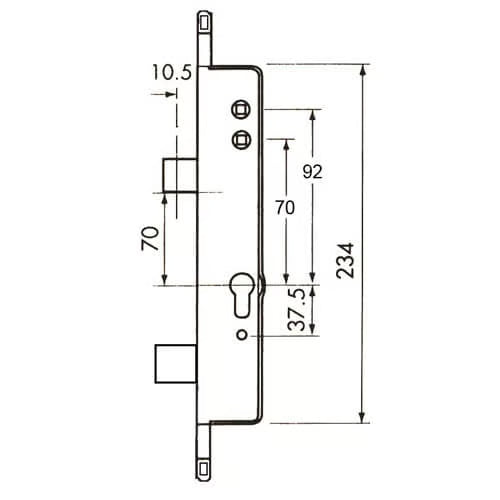

Product Specifications

• Manufacturer: Cego Genuine
• Backset: 35mm (Need help measuring? Click here for guidance.)
• Centres PZ: 92mm/70mm (Unsure how to measure? Find out more here.)
• Case Height: 234mm
• Case Width: 52mm
• Copy/Genuine: Genuine
• Cylinder Type: Euro
• Handing: Not Handed
• Main Gearbox: Latch & deadbolt
• Spindle: Double 8mm
• Operation: Lift Lever or Double Spindle Nightlatch (Curious about the operation? Learn more here.)
• Packaging: Supplied in singles

For any further inquiries or assistance, feel free to reach out!
