Product Overview: Fullex SL16 Multipoint Door Lock

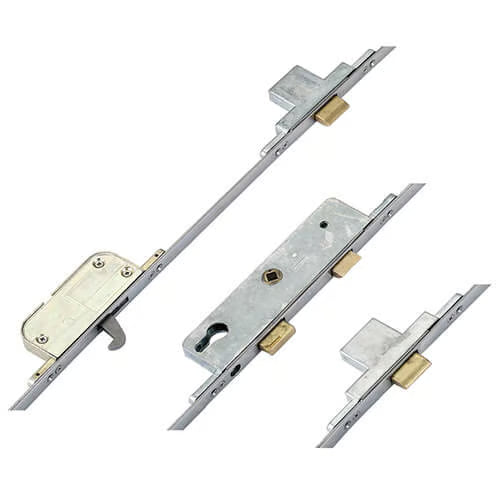

The Fullex SL16 multipoint door lock is engineered for security and durability, featuring a robust design that includes 1 hook, 3 deadbolts, and 1 latch. This lock has been a trusted choice for both private and social housing for decades, thanks to its unique PZ centre measurement of 68mm, setting it apart from other multipoint locks on the market.
Key Features:
-
Configurations: Available in various configurations and faceplate sizes, the SL16 lock includes a central latch and deadbolt, complemented by two additional deadbolts positioned equidistant from the spindle.
-
Measurement Details:
- 650mm from the spindle to both the top and bottom deadbolts.
- An optional hook lock is located 345mm from the spindle, enhancing security.
-
Identification: Identifying an SL16 lock is straightforward. Look for the 68mm centres on the gearbox. Older versions may lack the Fullex branding, so ensure to verify the specifications to avoid confusion with original type A-G locks.
-
Faceplates: Manufactured from austenitic stainless steel, faceplates are available in 16mm or 20mm variants, ensuring high corrosion resistance.
-
Handle Compatibility: Requires handles with 68mm centres, available in standard lever lever or lever pad versions. Note that lever moveable pad versions with a snib are no longer available.
-
Gearbox Options: Fullex SL16 gearboxes come in 35mm, 45mm, and 55mm backsets, featuring a split spindle for versatile operation as a lift lever or split spindle nightlatch.
-
Security Features: The tapered deadbolts provide enhanced security and compression, throwing 20mm into their keeps when engaged.
Operation Instructions:
To lock the door:
- Lift the handle upwards to engage the locking points.
- Turn the key to lock the locking points and main deadbolt (if applicable).
To unlock the door:
- Turn the key to unlock the system.
- Push the handle downwards to disengage the locking points and retract the latch.
Specifications:
- Manufacturer: Fullex
- Backset: Select from drop-down options
- Centres PZ: 68mm
- Faceplate: Select from drop-down options
- Spindle Size: 8mm
- Hooks: 1
- Deadbolts: 3
- Latch: 1
- Main Gearbox: Latch & deadbolt
- Operation: Select from drop-down options
- Spindle: Split 8mm
- Handing: Non-handed
- Distance Between Inner Locking: 1300mm
- Height: 1775mm
- Top Hook to Spindle: 345mm
- Top Deadbolt to Spindle: 650mm
- Bottom Deadbolt to Spindle: 650mm
- Door Material Compatibility: UPVC, Aluminium, Timber, Composite
Additional Information:
The Fullex SL16 lock has undergone rigorous testing, including 100,000 operational cycles and corrosion resistance tests to BS EN 1670 Grade 5 for 480 hours. It meets the requirements of Secured by Design and is suitable for use on PAS24 compliant door sets. We also offer a range of associated products, including keeps, spindles, handles, and accessories, to complement your Fullex SL16 multipoint door lock.
