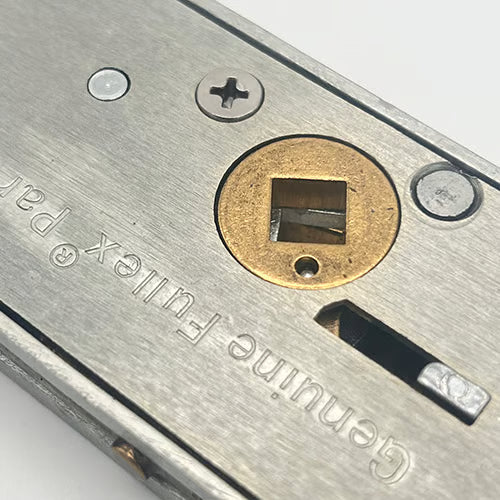

SL16 Genuine Multipoint Gearbox - Lift Lever or Split Spindle

Product Overview: Fullex Crimebeater Gearboxes

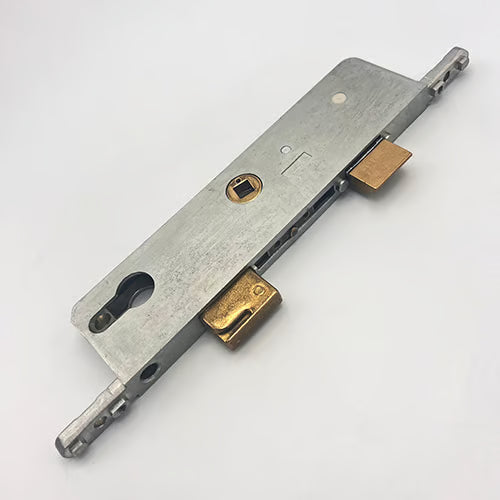

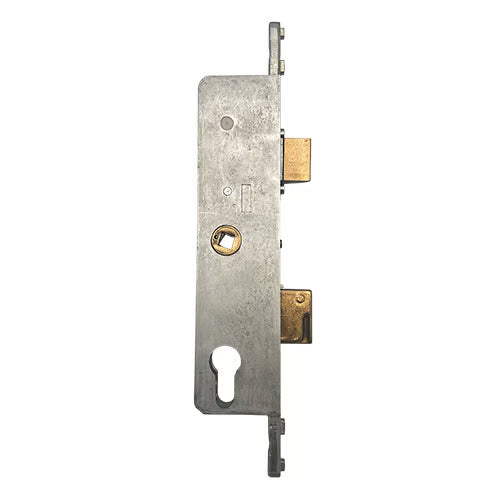

Fullex Crimebeater gearboxes are designed for enhanced security and versatility, available in three backset sizes: 35mm, 45mm, and 55mm. These gearboxes operate in a double spindle configuration, making them suitable for both lift lever and double spindle night latch locks.

Specifications:

• Dimensions:

  • Height: 230mm
  • Backset: 35mm, 45mm, or 55mm + 15mm

• Attachment:

  • Secured with three equidistant screws
  • Middle screw positioned 108mm from both the top and bottom screws

• Lock Features:

  • Deadbolt: 30mm high
  • Latch: 24mm high
  • Distance between latch and deadbolt: 72mm

Design Enhancements:

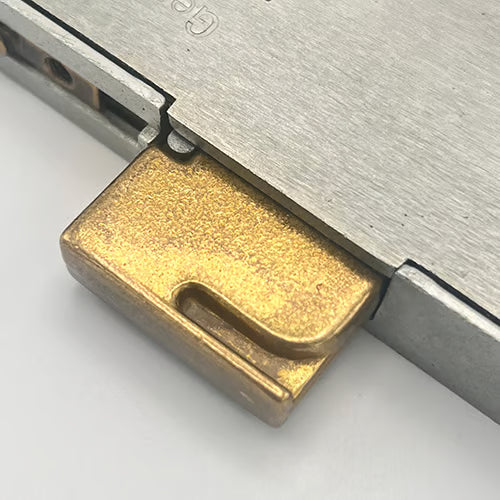

The latest version includes a small rectangular raised area above the cylinder cut-out, designed to prevent manipulation of the lock gate when handles are removed. If the new case does not fit, it may be necessary to enlarge the hole for proper entry.

Compatibility:

These gearboxes are also compatible with the Automatic lock system.

Operation Instructions:

• Operation Mode: Lift lever or double spindle
• Latch Reversal:
  • To reverse the latch, simply undo the screw, remove the latch, reverse it, reinsert, and replace the screw.

This comprehensive design ensures that the Fullex Crimebeater gearboxes provide reliable security solutions for various locking needs.

Product Specification

To measure the backset, follow these steps:

1. Identify the Lock Position: Locate the center of the lock where the keyhole or handle is positioned.

2. Measure from the Edge: Use a tape measure to determine the distance from the edge of the door to the center of the keyhole or handle. This distance is your backset measurement.

For the centres PZ measurement:

1. Locate the Keyhole and Handle: Identify the positions of both the keyhole and the handle on the door.

2. Measure the Distance: Measure the distance between the center of the keyhole and the center of the handle. This will give you the PZ measurement.

Regarding the operation of the Fullex Crimebeater gearboxes:

• Lift Lever: This operation allows you to lift the lever to engage the latch and deadbolt, providing a secure locking mechanism.

• Double Spindle Nightlatch: This operation involves using a double spindle mechanism, which allows for locking and unlocking from both sides of the door, enhancing security and convenience.

These specifications ensure that the Fullex Crimebeater gearboxes meet various security needs while being easy to install and operate.
