Description

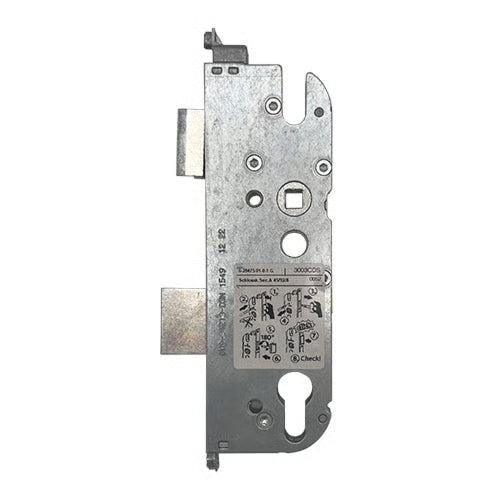

Product Overview: GU Secury A2 Automatic Gearboxes
The GU Secury A2 automatic gearboxes are designed for enhanced security and convenience, featuring one of the first automatic locking multipoint systems. Available in three backset sizes—35mm, 45mm, and 55mm—these gearboxes are perfect for various door configurations.
Key Features:
-
Dimensions:
- Height: 185mm (excluding fixing lugs)
- Width: Backset + 18mm
-
Locking Mechanism:
- Incorporates both a latch and a deadbolt for maximum security.
-
Measurement Tips:
- Always allow an additional 2mm when measuring your backset with the faceplate attached.
-
Associated Products:
- We offer a comprehensive range of products compatible with GU Secury A2 gearboxes, including multipoint door locks, keeps, spindles, handles, and various accessories.
How to Operate the Lock:
To Lock the Door:
- Close the door to automatically engage the latch and locking points as the triggers connect with the keeps on the frame.
- Turn the key to deadlock the mechanism.
To Unlock the Door:
- Turn the key to unlock the mechanism.
- If equipped with a lever, push it down to retract the locking points. Alternatively, a further quarter turn of the key will retract the latch, allowing you to open the door.
Product Specifications:
- Manufacturer: GU
- Backset Options: 35mm, 45mm, or 55mm
- Centres PZ: 92mm
- Case Height: 185mm
- Case Width: Backset + 18mm
- Copy/Genuine: Genuine
- Cylinder Type: Euro
- Handing: Not Handed
- Main Gearbox: Latch & deadbolt
- Spindle: Single 8mm
- Operation: Automatic Locking
- Packaging: Supplied in singles
For any further inquiries or assistance, feel free to reach out!
