KFV Multipoint Door Lock Gearboxes

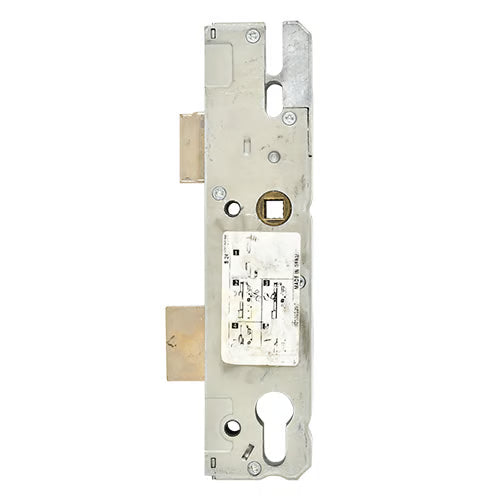

KFV multipoint door lock gearboxes are designed for durability and security, featuring a single spindle and 92mm centres. These gearboxes are ideal for modern KFV locks, as they are riveted onto strips and require drilling and re-riveting for installation.
Key Features:
-
Dimensions:
- Overall Height: 210mm
- Bolt Throw: 21mm
- Distance from Bottom of Latch to Top of Deadbolt: 56mm
- Distance from Spindle to Top of Case: 85mm
-
Compatibility:
- Only compatible with newer KFV locks; older versions have different connectors.
- Older KFV gearboxes use 1/8" rivets for attachment, while newer models are screwed to the faceplate.
-
Lock Variants:
- Available as lift lever or key wind variants. Note that these cannot be interchanged.
-
Backset Measurement:
- When measuring backset, allow 2-3mm for the faceplate. For example, a 35mm backset gearbox will measure 32mm when not fixed to the strip.
-
Installation Considerations:
- Early KFV models may have different rivet spacing and connectors, which could complicate replacement if only the gearbox is being changed.
Associated Products: We offer a comprehensive range of products for KFV lever gearboxes, including multipoint door locks, keeps, spindles, handles, and accessories.
Operating Instructions:
To Lock the Door:
- Lift the handle upwards to engage the locking points.
- Lock the locking points and main deadbolt (if present) by turning the key.
To Unlock the Door:
- Unlock the system by turning the key.
- Push the handle downwards to disengage the locking points and retract the latch.
Product Specifications:
- Manufacturer: KFV
- Backset Options: 25mm, 30mm, 35mm, 40mm, or 45mm
- Centres PZ: 92mm
- Case Height: 210mm
- Case Width: Backset + 18mm
- Copy/Genuine: Genuine
- Cylinder Type: Euro
- Handing: Not Handed
- Main Gearbox: Latch & Deadbolt
- Spindle: Single 8mm
- Operation: Lift Lever
- Packaging: Supplied in singles
For any further assistance or inquiries about our KFV products, feel free to reach out!
