Description

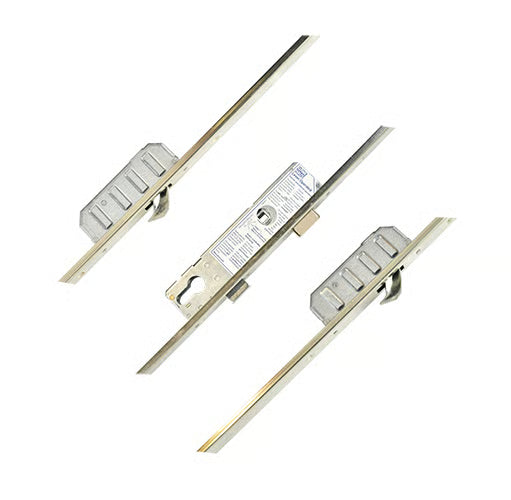

Winkhaus Trulock Multipoint Door Lock Overview
The Winkhaus Trulock multipoint door lock is designed for enhanced security and functionality, featuring a robust configuration of 2 hooks, 1 deadbolt, and 1 latch. This system is ideal for timber and composite doors, particularly in social housing and new build projects.
Key Features:
-
Multi-Point Locking System: The Trulock system includes a central latch and deadbolt, complemented by either 2 or 4 hook locking points, ensuring maximum security.
-
Handed Hook Locking Points: Unlike non-handed locks, Trulocks feature handed hooks that cannot be reversed on-site, providing a tailored fit for your door.
-
Easy Identification: Look for the Winkhaus logo and the Secured by Design logo on the faceplate. The Trulock version is identifiable by its central deadbolt and handed hooks.
-
Interchangeable Gearboxes: Trulock gearboxes share routing details with Cobra locks, allowing for easy upgrades or changes in locking operation.
-
Compact Design: All Winkhaus gearboxes, except the AV4, measure 185mm high, making them the smallest on the market.
Operation Instructions:
To lock the door:
- Lift the handle upwards to engage the locking points.
- Turn the key to secure the locking points and main deadbolt.
To unlock the door:
- Turn the key to unlock the system.
- Push the handle downwards to disengage the locking points and retract the latch.

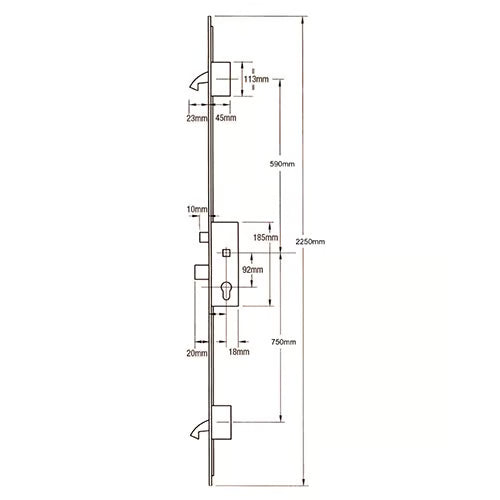

Product Specifications:
- Manufacturer: Winkhaus
- Backset: Selectable from drop-down
- Centres PZ: 92mm
- Faceplate: Selectable from drop-down
- Spindle Size: 8mm
- Hooks: 2
- Deadbolts: 1
- Latch: 1
- Main Gearbox: Latch & deadbolt
- Operation: Selectable from drop-down
- Spindle: Single 8mm
- Handing: Left Hand
- Distance Between Inner Locking: 1340mm
- Height: 2250mm
- Top Hook to Spindle: 590mm
- Bottom Hook to Spindle: 750mm
Secured by Design: The Winkhaus Trulock has been rigorously tested to withstand 100,000 cycles, ensuring durability and reliability.
Explore our range of associated products, including keeps, spindles, handles, and accessories, to complement your Winkhaus Trulock multipoint door lock. Whether for UPVC, aluminium, timber, or composite doors, the Trulock system provides a versatile and secure locking solution.
