Description
Product Overview

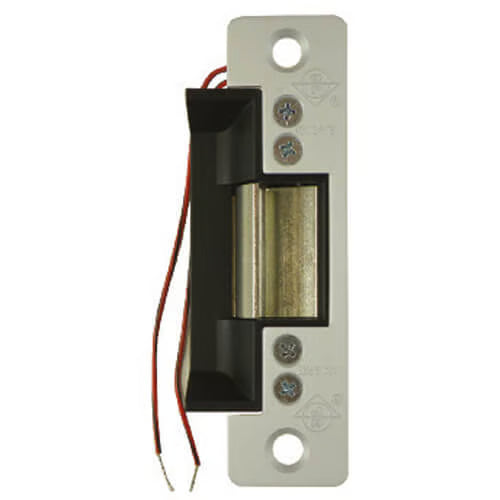

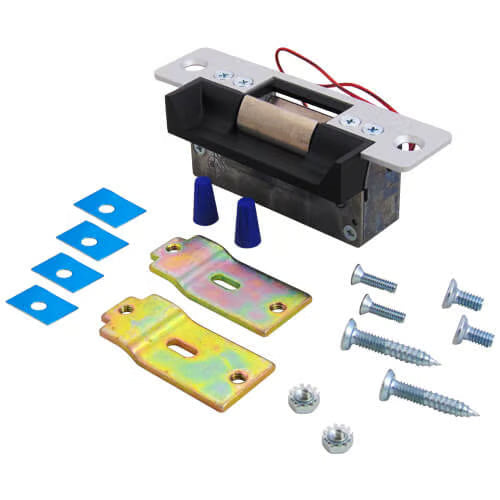

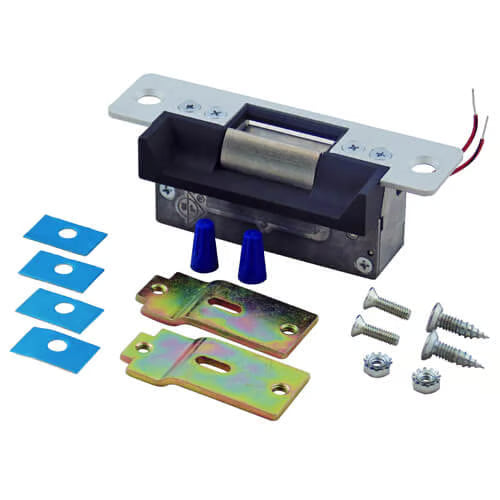

The 7100 series electric strike is designed for single door applications, featuring a sleek flat SAA faceplate. It is available in both 12v and 24v options, with monitored or unmonitored configurations, and can be specified as either fail safe or fail secure. Additionally, it supports AC supply versions, and the fail secure/fail safe operation can be reversed on-site for flexibility. The included sub cover is compatible with doors that are 44mm thick and close flush with the jamb edge, with extended sub covers available for different requirements. This product is suitable for use with aluminium, steel, and timber frames.
Compatibility
The 7100 series is often paired with aluminium door deadlatch cases, particularly the Adams Rite 4710 series lock cases, ensuring a robust and secure locking solution.
Important Note on Returns
Please be aware that this item is sealed with a tamper-evident security seal. It is crucial to verify that the item matches the description on the invoice and is necessary for your application before breaking the seal. Once the seal is broken or the item is removed from its packaging, it is deemed ‘used’ and cannot be returned unless it is found to be faulty. Returns for faulty items will be processed according to the manufacturer's returns procedures.
Product Specifications
- Max Holding Force: 907kg (2000lbs)
- Handed: No
- Installation Depth: Fits into an aluminium jamb section as shallow as 44.45mm
-
Current Consumption:
- 332mA at 12V DC
- 1480mA at 12V AC
- 190mA at 24V DC
- Type: Mortice
- Style: ANSI
- Jaw: Non-adjustable
- Jaw Dimensions: (H) 35mm x (W) 15mm x (D) 12mm
- Release Dimensions: (H) 124mm x (W) 42mm x (D) 37mm
- Field Reversible: Yes (Fail safe/Fail secure)
- Latch Accommodation: 11mm (including 3mm air gap)
