Description
Product Overview

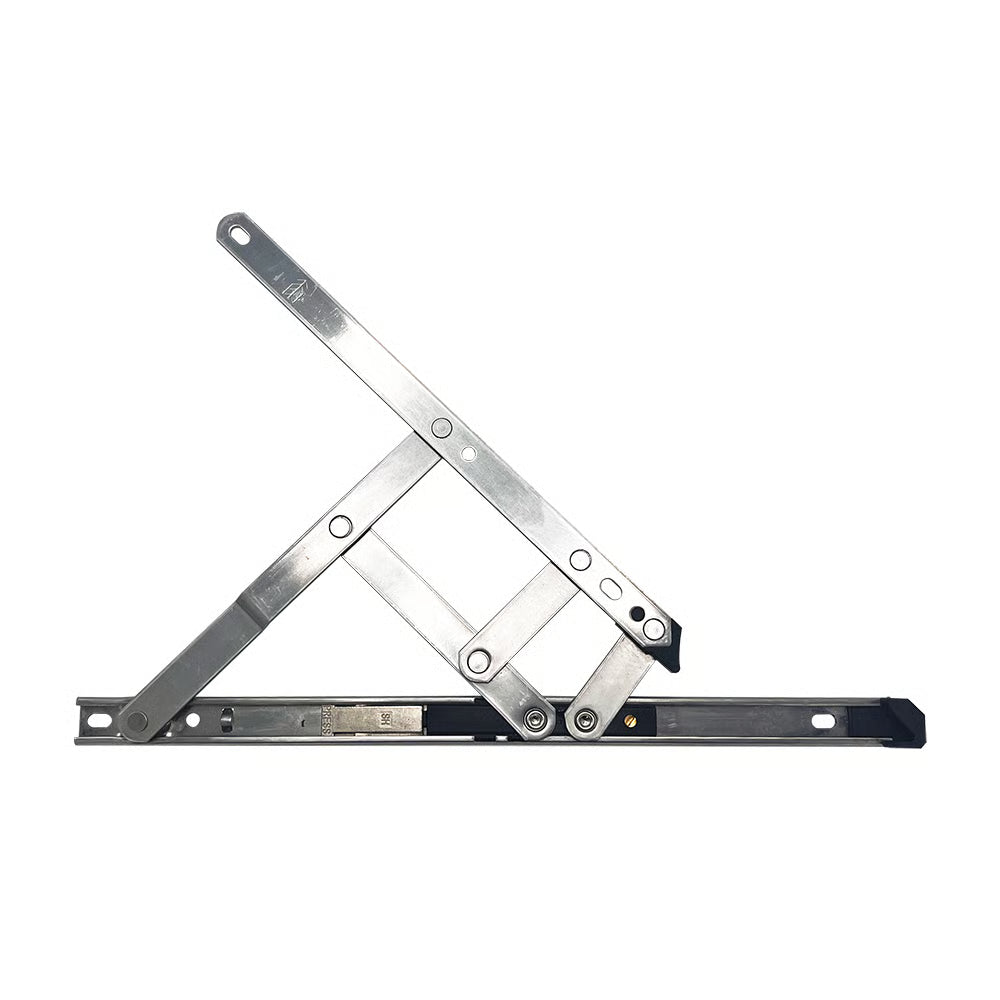

The TSS Restricted Friction Stay Range is expertly crafted to enhance the functionality of windows across various applications. With built-in restrictors, these stays ensure that windows do not fully open, providing safety and convenience.
Key Features
-
Smooth Operation: Designed for seamless closure and high performance.
-

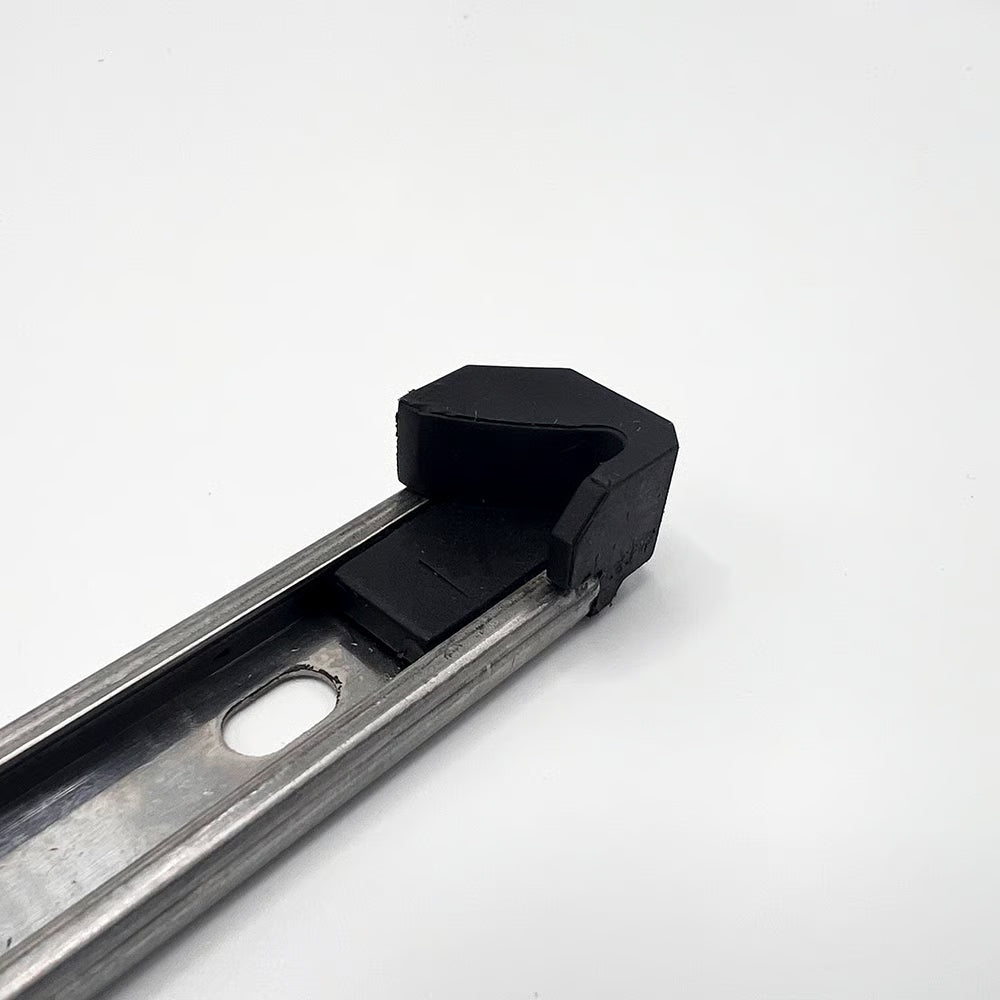

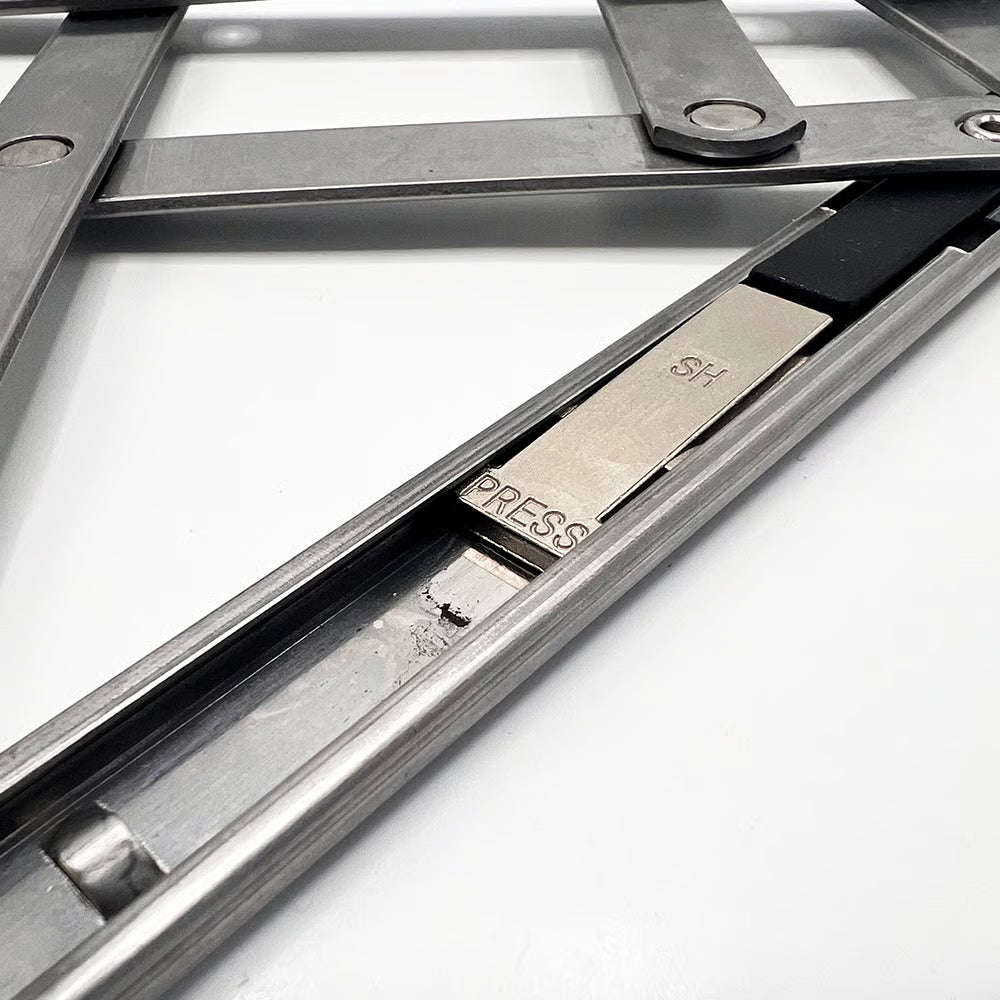

Built-in Restrictors: Allows for limited initial opening with a release mechanism for full opening, facilitating easy cleaning and ventilation.
-
Pair Supply:
- Top Hung: Supplied with 2x Restricted Stays.
- Side Hung: Includes 1x Restricted Stay and 1x Non-Restricted Stay.
-
Size Options: Available in a variety of sizes with 13mm or 17mm stack heights, tailored for Top Hung Windows.
-
Durability: Manufactured from Ferritic Steel and tested for over 30,000 open and close cycles, ensuring long-lasting performance.
-
No Fixings Included: Sold in pre-bagged pairs (1x Left Hand / 1x Right Hand).
TSS Commitment
At TSS, we believe that quality should be accessible. Our products meet rigorous specifications while remaining budget-friendly, ensuring you get the best value without compromising on quality.
Product Specifications
-
Overall Lengths: Available in 12", 16", 20", and 24".
-
Stack Heights: Choose between 13mm and 17mm.
-
Friction Stay Width: 8mm.
-
Performance Testing: Each stay is tested for over 30,000 open/close cycles.
-

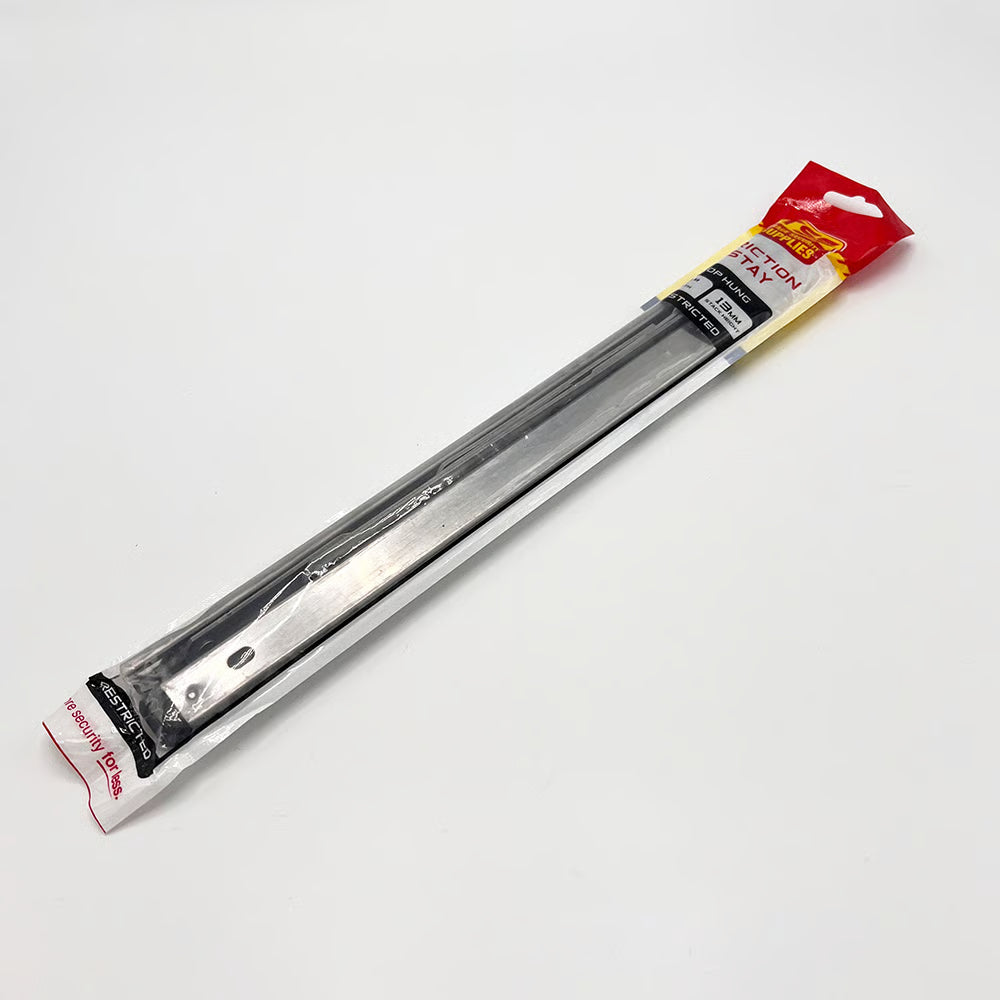

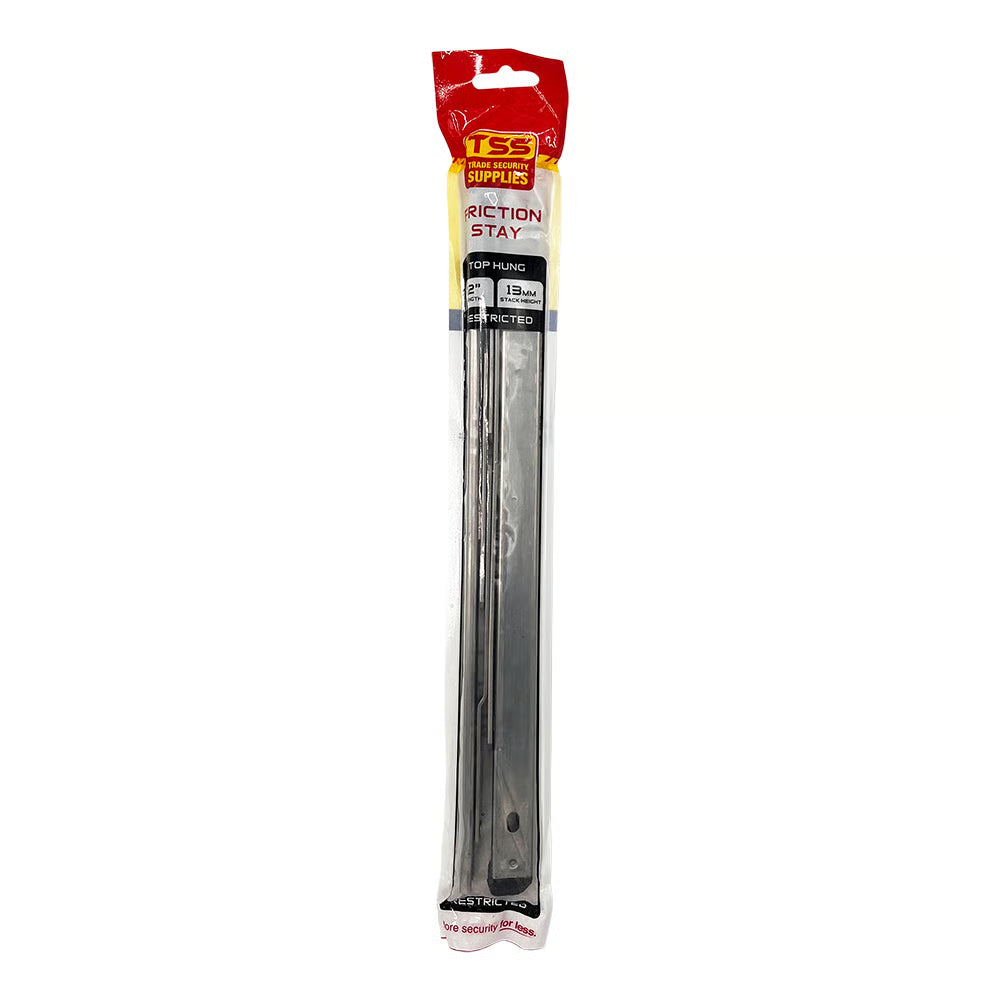

Bagged Pairs: Supplied in convenient packaging.
Max Weight and Window Dimensions
-
12" Top Hung:
- Opening Angle: 65 Degrees
- Max Weight: 21KG
- Max Window: 1100mm (W) x 600mm (H)
-
16" Top Hung:
- Opening Angle: 52 Degrees
- Max Weight: 22KG
- Max Window: 1200mm (W) x 750mm (H)
-
20" Top Hung:
- Opening Angle: 43 Degrees
- Max Weight: 24KG
- Max Window: 1200mm (W) x 1000mm (H)
-
24" Top Hung:
- Opening Angle: 38 Degrees
- Max Weight: 40KG
- Max Window: 1200mm (W) x 1000mm (H)
-
12" Side Hung:
- Opening Angle: 65 Degrees
- Max Weight: 21KG
- Max Window: 600mm (W) x 1100mm (H)
-
16" Side Hung:
- Opening Angle: 52 Degrees
- Max Weight: 22KG
- Max Window: 750mm (W) x 1200mm (H)
Choose TSS for reliable, high-quality window solutions that enhance your projects without breaking the bank.
