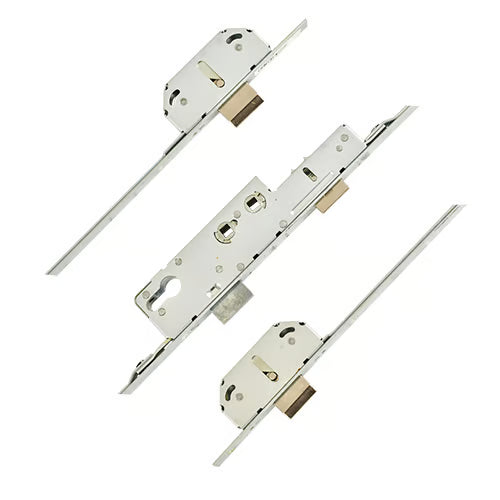

Product Overview: Avocet Multipoint Door Lock
The Avocet multipoint door lock is designed for enhanced security and ease of use, featuring 3 deadbolts and 1 latch for robust locking capabilities.
Identification Features
Once removed from the door, Avocet locks are easily identifiable. Look for the Avocet logo stamped on the faceplates, although older models may display the "WMS" logo. The unique gearbox shape, with a cut-out extending below the latch, further aids in identification.
Configurations and Materials
Originally, Avocet locks came in various configurations, including hooks, rollers, and deadbolts. The earlier models were made from yellow passivated steel, giving them a distinctive brassy appearance. Recent updates have introduced faceplates in stainless steel or a Trivalent silver finish, with most variations replaced during this transition. Notable exceptions include the 2 roller and 2 mushroom locks, as well as a shorter version of the 3 deadbolt lock for caravans.
Sash Lifter Device
Some models feature a "sash lifter" device for improved alignment, though these are no longer available. We recommend replacing these locks with standard versions for optimal performance.
Backset and Compatibility
Most Avocet locks are designed with a 35mm backset, while the Affinity Bastion lock accommodates composite doors with a 45mm backset. The locks are compatible with PVCu doors featuring a flat 16mm faceplate, allowing for the installation of shootbolts.
Gearbox Specifications
Avocet gearboxes measure 218mm high plus the backset (add 15mm). The distinctive large cut-out in the top corner aids in handle fitment. The latch measures 29mm high, and the deadbolt is 34mm high, with an 82mm distance between them. Gearboxes are secured by arms connected with circlips, making full unit replacement advisable due to design changes over time.
Operation Instructions
To Lock the Door:
- Close the door to engage the latch automatically.
- Lift the handle to engage the locking points.
- Turn the key to lock the system.
To Unlock the Door:
- Turn the key to unlock the system.
- Push the handle down to disengage the locking points.
- A quarter turn of the key will retract the latch.
Durability and Testing
Avocet locks are corrosion resistant, meeting BSEN1670:2007 Grade 4 standards, and are tested for 100,000 cycles, ensuring long-lasting performance.
Associated Products
We offer a range of associated products for Avocet multipoint door locks, including keeps, spindles, handles, and accessories, making it easy to find everything you need for your locking system.
Product Specifications:
- Manufacturer: Avocet
- Backset: Select from drop-down
- Centres PZ: 92mm/62mm
- Faceplate: Select from drop-down
- Spindle Size: 8mm
- Deadbolts: 3
- Latch: 1
- Main Gearbox: Latch & deadbolt
- Operation: Select from drop-down
- Spindle: Double 8mm
- Handing: Non-handed
- Distance Between Inner Locking: 1400mm
- Height: 1565mm
- Top Deadbolt to Spindle: 685mm
- Bottom Deadbolt to Spindle: 715mm
- Door Material: UPVC, Aluminium
