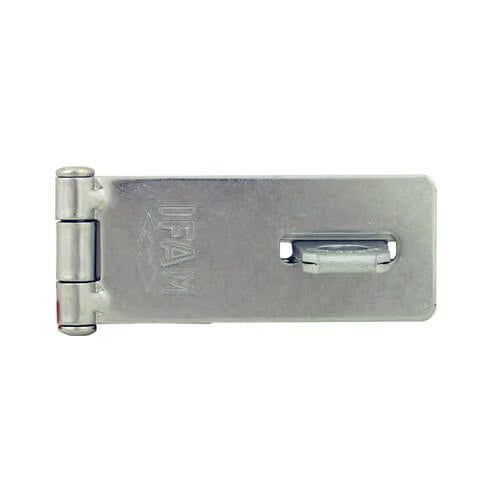

The PC Series hasps and staples from IFAM are designed for durability and ease of use, available in three different sizes. Their easy assembly and versatility make them ideal for securely attaching padlocks with shackles measuring between 11-12 millimeters in diameter, ensuring a high level of security for your belongings.
Product Specification

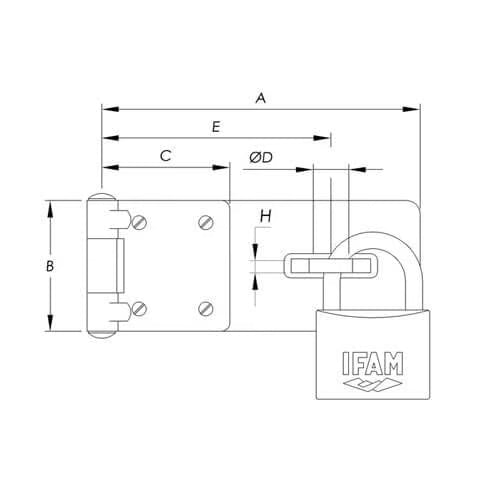

| Model | IF00410 | IF00420 | IF00430 |
|---|---|---|---|
| Body length (from the axis to the hinge) (A) | 73mm | 112mm | 131mm |
| Body height (B) | 29mm | 47mm | 47mm |
| Bracket length (C) | 28mm | 45mm | 45mm |
| Diameter of the ring hole (D) | 9.5mm | 13mm | 13mm |
| Distance from the hinge axis to the axis of the ring (E) | 53mm | 81mm | 100mm |
| Suitable for padlocks with up to 12mm shackle | Yes | Yes | Yes |
| Material | Stamped Steel | Stamped Steel | Stamped Steel |
| Fastening Ring | Hardened Steel | Hardened Steel | Hardened Steel |
| Body Sizes | 3 | 3 | 3 |
| Fixings Not Supplied | Yes | Yes | Yes |
| Hidden Screws When Hasp is Closed | Yes | Yes | Yes |

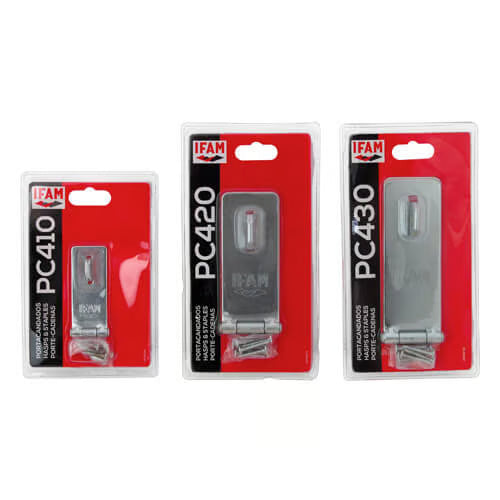

| Packaging | Visi-packed | Visi-packed | Visi-packed |
These hasps and staples are perfect for a variety of applications, providing a reliable solution for securing your items.
