Patriot Plus 3D Flag Hinge

Product Overview

The Trojan Patriot Plus 3D Flag Hinge is engineered for precision and versatility in door applications. This innovative hinge allows for three-dimensional adjustability, ensuring that your doors align perfectly and operate smoothly. With a maximum weight capacity of 80kg when using three hinges, it is ideal for a variety of door types.

Key Features

• 3D Adjustability: Easily adjust vertical, horizontal, and compression settings for optimal alignment.

• Profile Step Heights: Available in 16mm, 19mm, and 22mm to suit different door profiles.

• Maximum Load: Supports up to 80kg when fitted with three hinges, making it suitable for heavier doors.

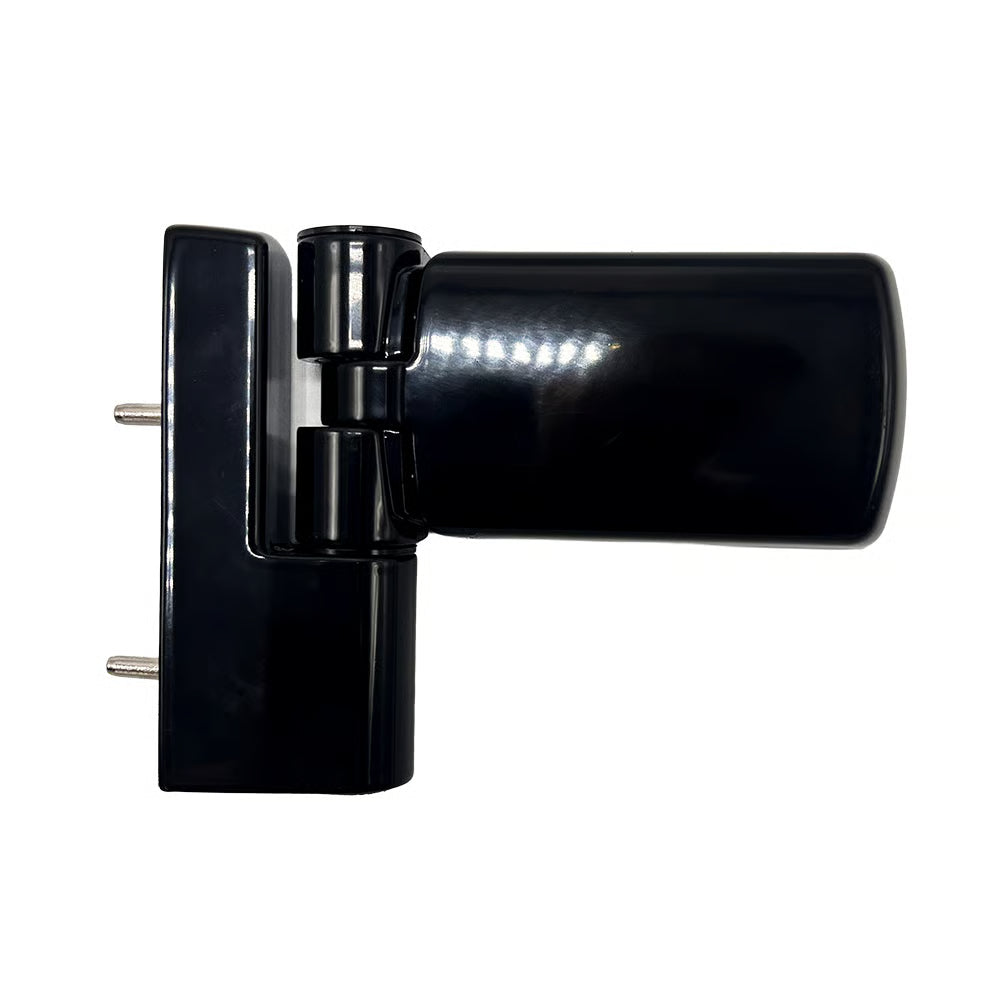

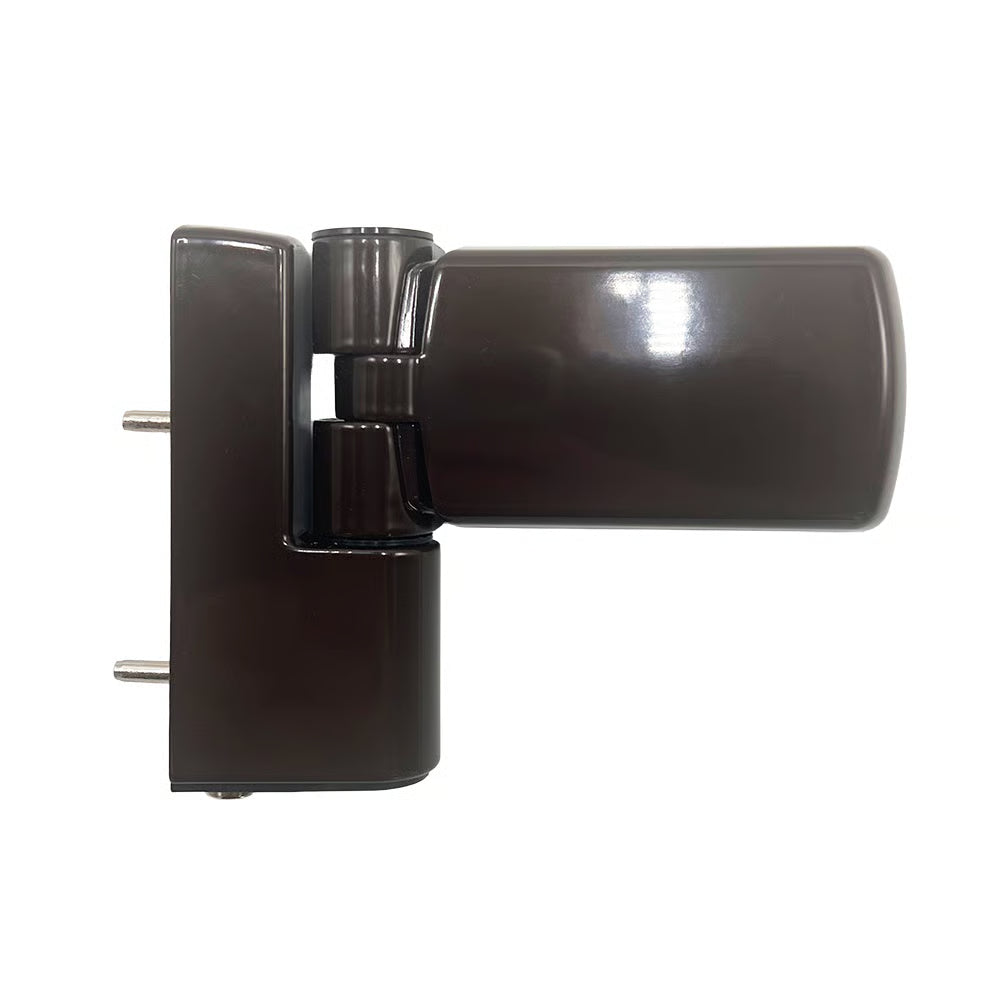

• Colour Options: Choose from a range of colours including white, black, brown, and anthracite grey to match your decor.

• Flag Hinge Design: Specifically designed for doors that require step-in profiles, ensuring a seamless fit.

Fitment & Installation Guidelines

To ensure proper installation and functionality, please consider the following:

• Profile Step Height: Select the appropriate height that corresponds with your door and frame configuration to maintain correct alignment.

• Weight Capacity: Confirm that the total door weight does not exceed 80kg when using three hinges.

• Dimensions & Colour: Verify that the hinge dimensions and colour align with your door and frame specifications.

• Installation: Use the correct screws for fixing the hinge to both the door and frame. Pay attention to hinge orientation based on the door handing for optimal performance.

Common Ordering Mistakes

Avoid these common pitfalls when ordering:

• Incorrect Profile Step Height: Ensure the selected height matches your door profile.

• Exceeding Weight Capacity: Double-check that the door weight is within limits for the number of hinges used.

• Mismatched Colour: Choose a colour that complements your door or frame finish.

• Neglecting Door Handing: Confirm door handing and hinge orientation before placing your order.

Product Specifications

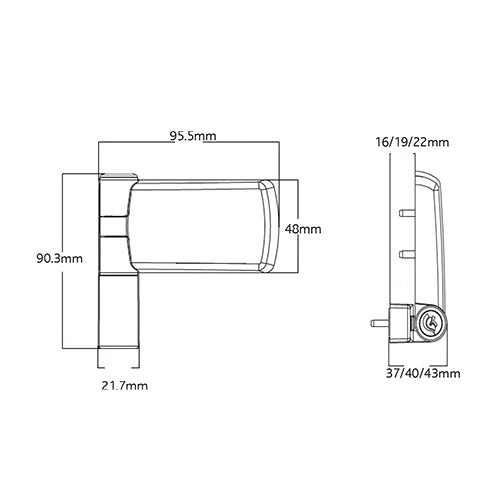

• Size: 90.3mm height x 95.5mm width.

• Profile Step Height: Select from drop-down menu.

• Max Load: 80kg for three hinges.

• Colour: Select from drop-down menu.

• Height Adjustment: +8mm.

• Compression Adjustment: +/-1.5mm.

• Lateral Adjustment: +/-6mm.

This hinge is designed to provide durability and ease of use, making it a perfect choice for your door needs.
