Description
Winkhaus Split Spindle - No Spring
Product Information

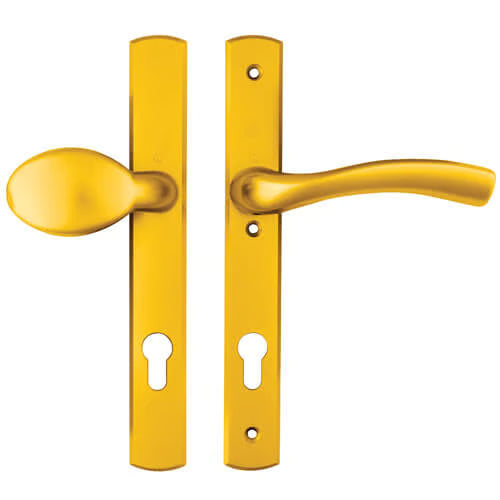

These Winkhaus Palladio handles feature an unsprung 92pz internal lever handle and an external moveable pad. With a backplate size of 260mm x 35mm, they are available in three finishes.
The handles come with three fixing screws, with the middle fixing located 22mm below the lever. The distance between the top and bottom fixing screws is 215mm, with the bottom screw positioned 30mm below the euro profile cut-out.
Each pair is supplied complete with fixings, including two spindles and two sets of color-coordinated screws of varying lengths to accommodate different door profiles.
Split Spindle Ordering Codes
Split spindles are supplied separately. Use the following ordering codes based on door thickness:
- 44mm door - 4978054
- 56mm door - 4978055
- 70mm door - 4978056
Handing Details
Palladio lever pad handles are handed. Refer to the following details for proper handing:
- For doors hinged on the right (when viewed from outside), use left-hand furniture.
- For doors hinged on the left (when viewed from outside), use right-hand furniture.
Product Specification
- Unsprung
- Length: 260mm
- Width: 35mm
- Centres (PZ): 92mm
- Screw centres: Top to bottom 215mm
- Base of euro to bottom screw: 30mm
- Top screw to spindle: 70mm
- Supplied with spindles and screws
- Supplied as a pair
- Handed: See product information for handing details
- Polybagged
