Description
Product Overview

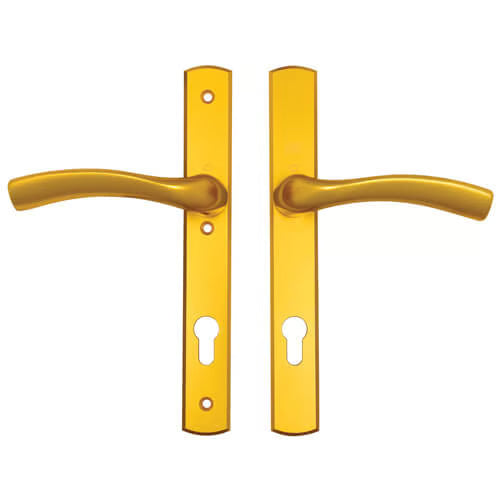

Introducing the Winkhaus Palladio handles, designed for both internal and external use. These unsprung lever handles feature a sleek backplate measuring 260mm x 35mm and are available in three elegant finishes to complement any decor.
Key Features
- Unsprung Design: Ensures smooth operation and durability.
- Backplate Dimensions: 260mm in length and 35mm in width.
- PZ Measurement: 92mm, suitable for a variety of door types.
- Fixing Screws: Equipped with three fixing screws, with the middle screw positioned 22mm below the lever for optimal stability.
- Screw Centre Distance: The distance between the top and bottom fixing screws is 215mm, with the bottom screw located 30mm below the euro profile cut-out.

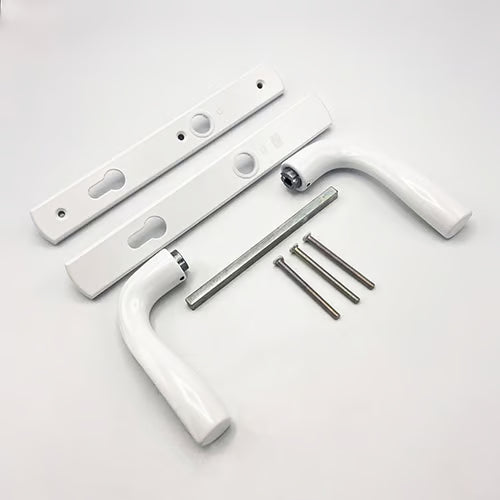

- Complete Set: Each pair comes with all necessary fixings, including a spindle and color-coordinated screws.

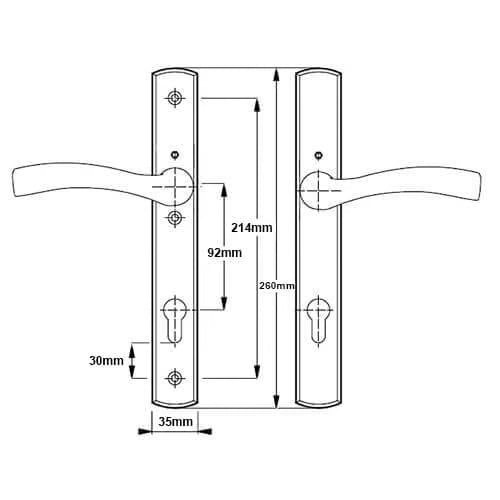

Product Specifications
- Type: Unsprung
- Length: 260mm
- Width: 35mm
- Centres (PZ): 92mm
- Screw Centres: 215mm (top to bottom)
- Base of Euro to Bottom Screw: 30mm
- Top Screw to Spindle: 70mm
- Packaging: Supplied as a pair, polybagged for protection.
Elevate your space with the stylish and functional Winkhaus Palladio handles, perfect for enhancing both security and aesthetics in your home or office.
