Description

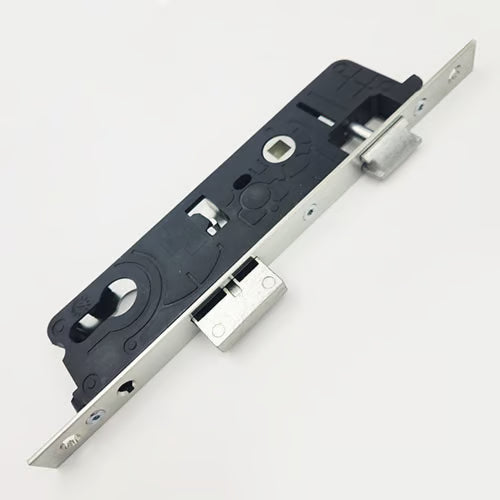

Product Overview: TSS Overnight Lock
The TSS Overnight Lock is an affordable and effective solution for securing properties overnight while awaiting a replacement full-length multipoint lock. Designed with versatility in mind, it is available in three backset sizes: 30mm, 35mm, and 45mm, all featuring a 92mm PZ (centres) and sash lock operation.
Key Features:
- Backsets Available: 30mm, 35mm, 45mm
- Operation: Sash Lock
- Contract Double Spindle Options: Use codes TSSOVN45DS or TSSOVN35DS for double spindle overnight locks.
Latch Reversal Instructions:
For 30mm & 35mm Backsets:
- Unscrew the screw located on the back of the lock case, parallel to the latch.
- Push the latch into the lock case until it sits behind the faceplate, then rotate it.
- Allow the latch to pop back into its original position in front of the faceplate and tighten the screw.
For 45mm Backsets:
- Locate the slightly curved cut-out on the lock case, parallel to the latch.
- Using a flat-head screwdriver, slide the pin in this cut-out toward the latch to push it forward.
- Rotate the latch 180 degrees, push it into the gearbox, and slide the pin back to its original position.
Why Choose TSS?
At TSS, we believe that quality should be accessible without a hefty price tag. Our products are crafted to meet high standards, ensuring they are a reliable upgrade over your current options. We are committed to providing high-quality solutions to the trade at competitive prices.

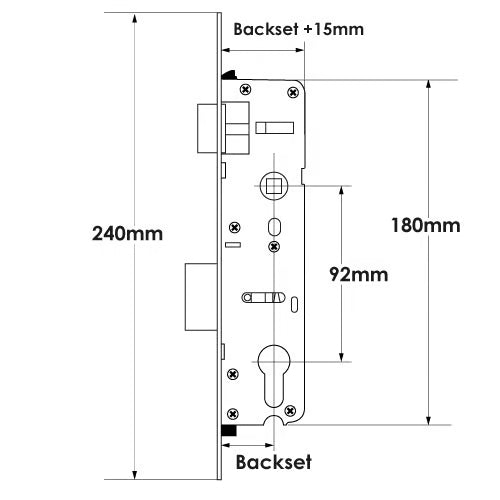

Product Specifications:
- Faceplate Dimensions: 240mm x 16mm
- Case Height: 179mm
- Case Width: Backset + 16mm
- Centres: 92mm
- Spindle Size: Solid 8mm
Choose TSS for a dependable and cost-effective locking solution that meets your security needs!
