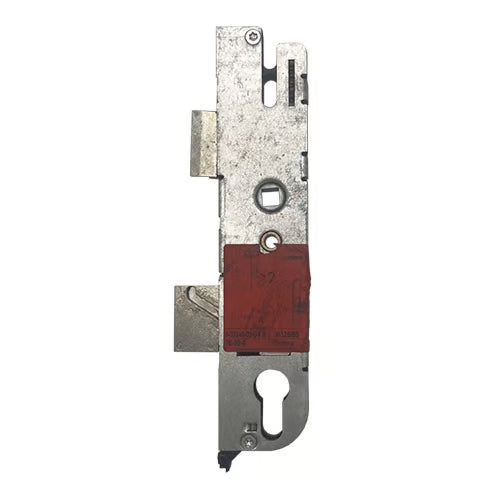

New Style Genuine Multipoint Gearbox - Lift Lever

Product Overview

Introducing the GU New Style Genuine Multipoint Gearbox - Lift Lever, designed specifically for new style GU multipoint locks. This gearbox is not compatible with older models due to distinct design features, particularly the vertical groove at the top corner that accommodates handle bolts.

Key Features

• Compatibility: Exclusively for new style GU multipoint locks; incompatible with old style versions.

• Operation: Lift lever function with an integrated latch and deadbolt.

• Backset Options: Available in 28mm, 35mm, 40mm, 45mm, and 55mm (select from drop-down).

• PZ Centres: Standard measurement of 92mm.

• Spindle Size: Single 8mm spindle.

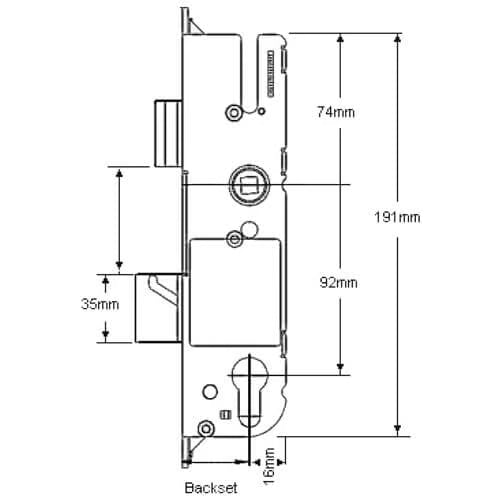

• Dimensions: Gearbox height is 191mm (excluding fixing lugs), with a width that equals the selected backset plus 16mm.

• Latch and Deadbolt Measurements: Latch height is 32mm, deadbolt height is 35mm, with a 54mm distance between the bottom of the latch and the top of the deadbolt.

• Faceplate Fixing: Secured with three screws, spaced 108mm from the top to the middle screw, and 92mm from the middle to the bottom screw.

• Latch Reversal: Easily reversible by twisting the latch into the desired position.

Fitment & Verification

To ensure proper fitment, please check the following:

• Confirm the gearbox is for new style GU multipoint locks by verifying the vertical groove at the top.

• Measure the door’s backset, allowing for an additional 2mm if the faceplate remains attached during measurement.

• Verify the required backset size from the available options before placing your order.

• Ensure that the PZ centres match the existing lock (92mm).

• Confirm the spindle size is an 8mm single spindle.

Common Ordering Mistakes

Avoid these common pitfalls when ordering:

• Ordering a new style gearbox for an old style GU lock or vice versa.

• Selecting the incorrect backset size without accounting for the 2mm measurement allowance.

• Confusing latch reversal with lock handing; remember that the latch can be reversed by twisting, but the door handing should be confirmed separately.

• Overlooking the PZ centres measurement, which may lead to incompatibility with handles and cylinders.

Operation Instructions

To lock the door:

1. Lift the handle upwards to engage the locking points.

2. Turn the key to lock the locking points and the main deadbolt (if present).

To unlock the door:

1. Turn the key to disengage the lock.

2. Push the handle downwards to retract the latch and disengage the locking points.

Product Specifications

• Manufacturer: GU

• Backset: Select from drop-down options.

• PZ Centres: 92mm

• Operation: Lift Lever

• Spindle: Single 8mm

• Height: 191mm

• Main Gearbox: Latch & deadbolt

• Case Width: Backset + 16mm

• Handing: Not Handed

• Packaging: Supplied in singles

• Copy/Genuine: Genuine

• Cylinder Type: Euro

For any further inquiries or assistance, feel free to reach out!
