New Style Genuine Multipoint Gearbox - Fast Locking

Product Overview: Fastlocking Europa Plus Gearboxes

Fastlocking Europa Plus gearboxes revolutionize door security with their innovative design. By simply lifting the handle, users can engage the locking points without needing to turn the key, enhancing convenience and efficiency. Unlike the old-style GU locks, these gearboxes feature a unique elongated hole at the top groove, setting them apart from traditional operation gearboxes.

Key Features:

• Backset Availability: Fastlocking Europa Plus GU gearboxes are exclusively available in a 35mm backset.

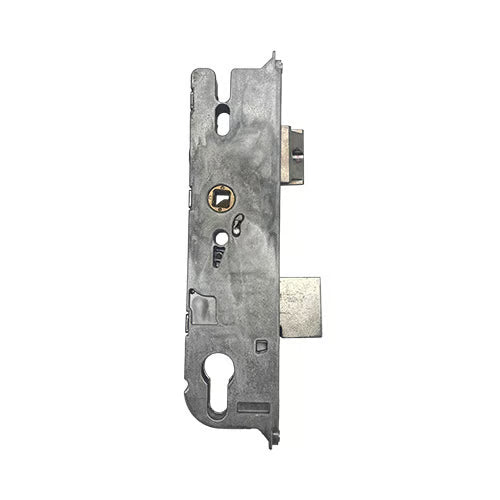

• Design Differentiation: New-style GU locks can be easily identified by their vertical groove at the top of the gearbox, which aids in the alignment of bolts for handles. In contrast, old-style locks have a top corner removed, making them incompatible with new-style gearboxes.

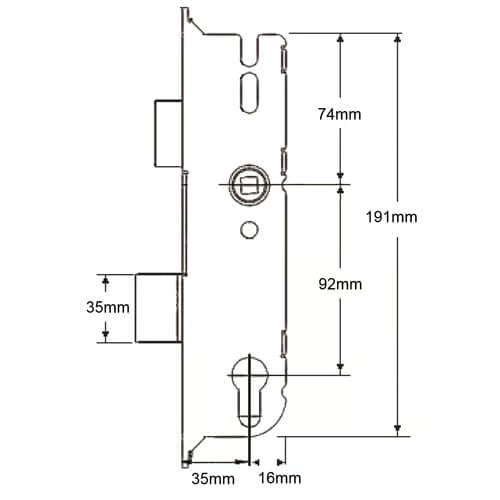

• Dimensions: GU multipoint lock gearboxes measure 191mm in height (excluding fixing lugs) and are 16mm wider than the backset. The latch stands at 32mm high, while the deadbolt measures 35mm high, with a distance of 54mm from the bottom of the latch to the top of the deadbolt.

• Installation: Gearboxes are secured to their faceplates with three screws, with specific measurements for screw placement: 108mm from the top to the middle screw and 92mm from the middle screw to the bottom screw.

• Measurement Tip: Always allow an additional 2mm when measuring your backset, ensuring the faceplate remains attached to the gearbox.

Associated Products:

We offer a comprehensive range of products compatible with GU Europa Plus gearboxes, including:

• Multipoint door locks
• Keeps
• Spindles
• Handles
• Accessories

Operation Instructions:

To Lock the Door:

1. Close the door to automatically engage the latch.
2. Lift the handle to engage additional locking points.
3. Throw the deadbolt and secure the system by turning the key (note: on some brands, lifting the handle will also throw the deadbolt).

To Unlock the Door:

1. Unlock the system by turning the key.
2. Push the handle down to disengage the locking points.
3. A further quarter turn of the key will retract the latch.

Latch Reversal:

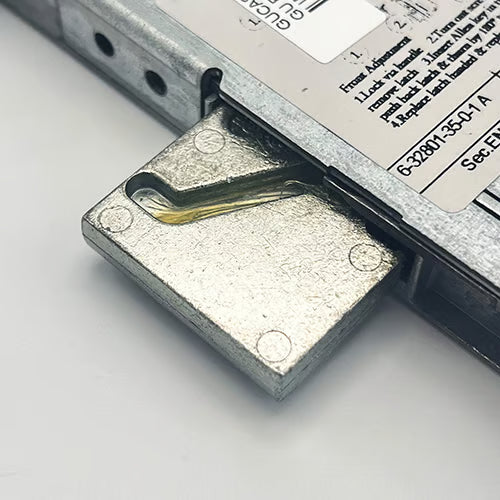

To reverse the latch, insert a flat-bladed screwdriver into the small rectangular slot above the spindle while simultaneously pulling out the latch. Reverse the latch and reinsert it for proper functionality.

With the Fastlocking Europa Plus gearboxes, experience enhanced security and ease of use for your multipoint locking systems.

Product Specification

Manufacturer: GU

Backset: 35mm
How to Measure the Backset:
To measure the backset, take a ruler or measuring tape and measure the distance from the edge of the door to the center of the keyhole or cylinder. Ensure that you measure straight across, as any angle can lead to inaccurate readings. Always allow an additional 2mm to ensure proper fitting.

Centres PZ: 92mm
How to Measure the Centres:
To measure the centres (PZ), measure the distance from the center of the keyhole to the center of the handle spindle hole. This measurement is crucial for ensuring that the handle and lock align correctly.

Case Height: 195mm

Case Width: 53mm

Copy/Genuine: Genuine

Cylinder Type: Euro

Handing: Not Handed

Main Gearbox: Latch & deadbolt

Spindle: Split 8mm

Operation: Fast Locking
What is the Operation?
The Fast Locking operation allows users to secure their doors quickly and efficiently. By simply lifting the handle, the locking points engage automatically, eliminating the need for a key in many cases. This feature enhances convenience, especially in high-traffic areas where quick access is essential.

Packaging: Supplied in singles
