Multipoint Gearbox - Lift Lever or Split Spindle

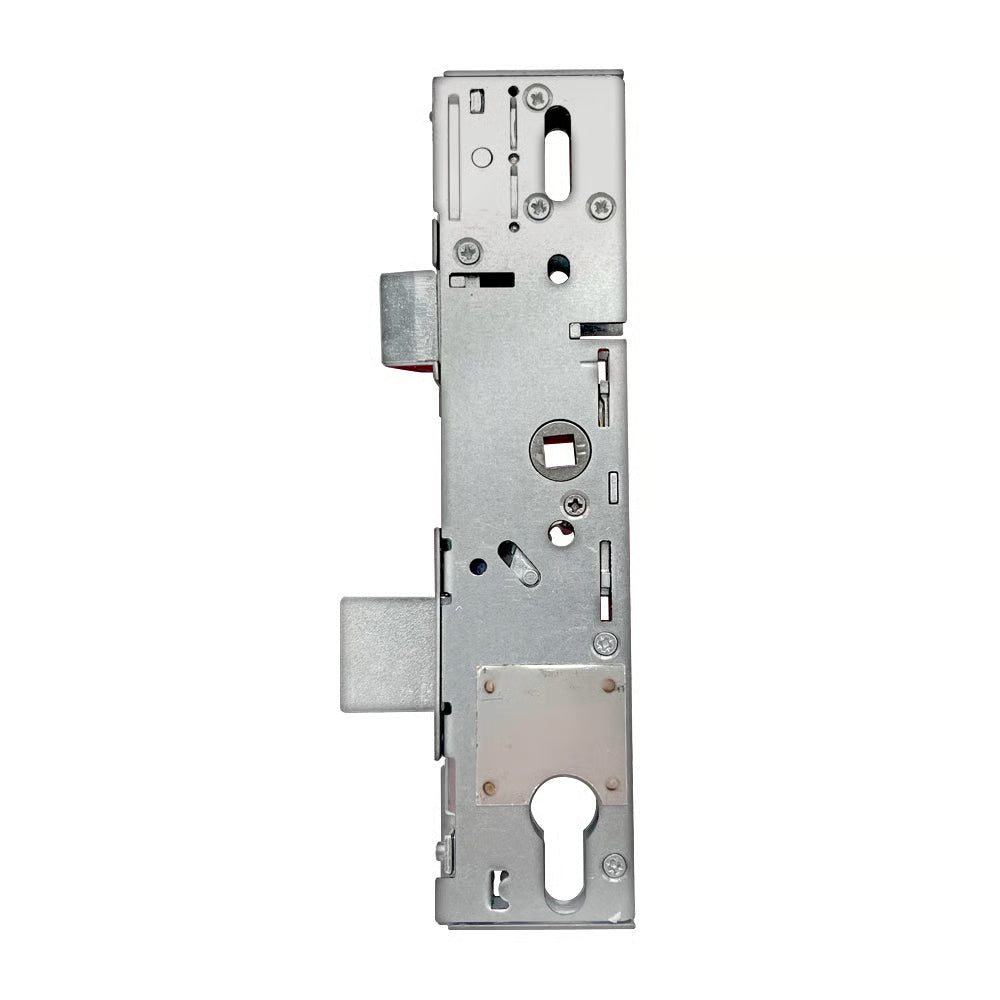

Product Overview: Spartan Multipoint Door Lock Gearboxes

Spartan multipoint door lock gearboxes are designed with a robust square shape and elongated piercing for secure bolt-through fixings. With an overall length of 220mm, these gearboxes are available in two backset options: 35mm and 45mm.

Key Features:

• Latch and Deadbolt Dimensions:

  • Latch Height: 24mm (features two distinctive screws)
  • Deadbolt Height: 30mm
  • Distance Between Latch and Deadbolt: 61mm

• Screw Configuration:

  • The gearbox is secured to the faceplate with four screws, which is a unique feature for multipoint locks.
  • Screw hole measurements:
    • First to second: 37mm
    • Second to third: 85mm
    • Third to fourth: 43mm

• Backset Measurement:

  • When measuring the backset, account for an additional 2-3mm for the faceplate. Thus, a 35mm backset gearbox will measure approximately 32mm when not attached to the strip.

Operation Instructions:

• Locking the Door:

  1. Close the door to automatically engage the latch.
  2. Lift the handle to activate the additional locking points.
  3. Throw the deadbolt and secure the system by turning the key (note: on some brands, lifting the handle will throw the deadbolt).

• Unlocking the Door:

  1. Turn the key to unlock the system.
  2. Push the handle down to disengage the locking points.
  3. A further quarter turn of the key will retract the latch.

Latch Reversal: To reverse the latch, simply undo the screws, remove the latch, reverse it, and reinsert before replacing the screws.

Nightlatch Split Spindle Reversal: To reverse the nightlatch split spindle, remove the latch to access a small screw. Use a small bladed screwdriver to turn the screw 180 degrees, then return the latch to its correct position.

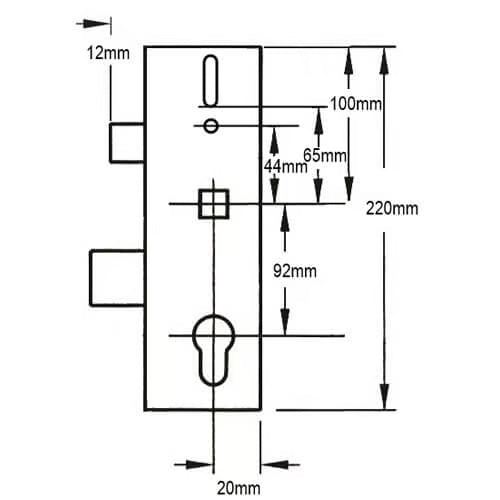

Product Specifications:

• Manufacturer: Spartan
• Backset Options: 35mm or 45mm
• Centres PZ Measurement: 92mm
• Case Height: 220mm
• Case Width: Backset + 20mm
• Deadbolt Width: 6mm
• Copy/Genuine: Genuine
• Cylinder Type: Euro
• Handing: Not Handed
• Main Gearbox: Latch & Deadbolt
• Spindle: Split 8mm
• Operation: Lift Lever or Split Spindle Nightlatch
• Packaging: Supplied in singles
