Mantis 3 Latch 3 Hooks 2 Deadbolts Double Spindle Multipoint Door Lock

Millenco Mantis 3 Multipoint Door Lock

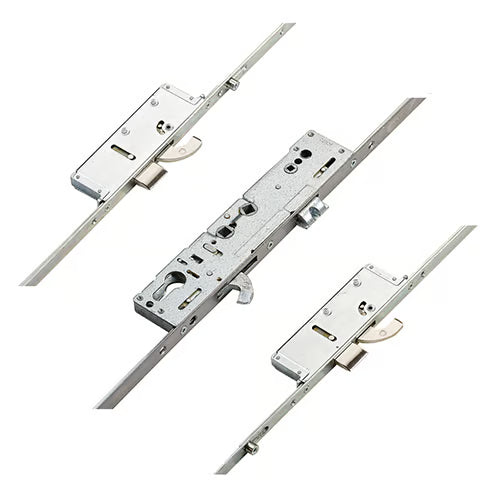

The Millenco Mantis 3 multipoint door lock is engineered for security and reliability, featuring a robust design with 3 hooks, 2 deadbolts, and 1 latch, complemented by attachments for top and bottom shootbolts.

Key Features:

• Traditional Design: Retains the classic 92mm centres while incorporating the unique hook and deadbolt locking points from the Mantis 1 and 2 series.
• Versatile Variants: Available in three configurations: 2 hooks and 3 deadbolts, 3 hooks and 2 deadbolts with rollers, and a passive lock version.
• Faceplate Options: Now exclusively offered with a 16mm faceplate, ensuring a sleek fit for modern doors.

Identification Tips:

Identifying the Mantis 3 can be tricky. Look for the distinctive hook and deadbolt arrangement and measure the centres to confirm the 92mm/62mm specification. Early models may lack branding on the faceplate, so careful inspection is essential.

Gearbox Specifications:

• Configuration: Double spindle for lift lever or nightlatch operation.
• Backset: Fixed at 35mm.
• Dimensions: Gearboxes measure 228mm high by 50mm wide, with hookbolt versions featuring a central hook bolt that throws downwards.

Operation Instructions:

To lock the door:

1. Close the door to engage the latch automatically.
2. Lift the handle to engage the locking points.
3. Turn the key to secure the system.

To unlock the door:

1. Turn the key to unlock.
2. Push the handle down to disengage the locking points.
3. A quarter turn of the key will retract the latch.

Additional Products:

We offer a variety of associated products for the Millenco Mantis 3, including keeps, spindles, handles, and other accessories to enhance your locking system.

Latch Reversal:

For latch reversal, simply undo the screws, reverse the latch, and reinsert the screws.

Applications:

This lock is suitable for various door materials, including UPVC, aluminium, timber, and composite doors, making it a versatile choice for enhancing security in any setting.

Product Specifications:

• Manufacturer: Millenco
• Backset: Selectable
• Centres PZ: 92mm/62mm
• Faceplate: Selectable
• Spindle Size: 8mm
• Rollers: 2
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Operation: Selectable
• Spindle: Double 8mm
• Handing: Non-handed

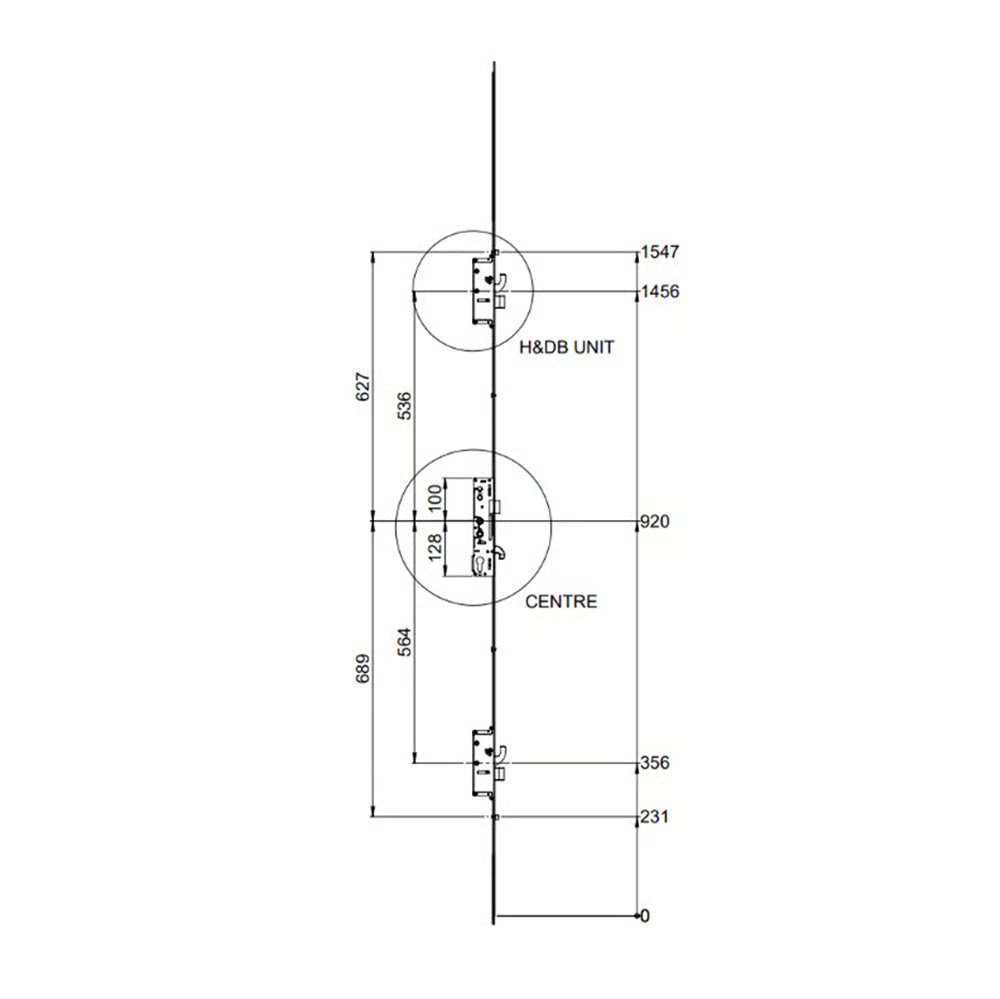

• Distance Between Inner Locking: 1100mm
• Distance Between Outer Locking: 1316mm
• Height: 1990mm
• Door Material: UPVC, Aluminium

Ensure your door is equipped with the Millenco Mantis 3 for optimal security and peace of mind.
