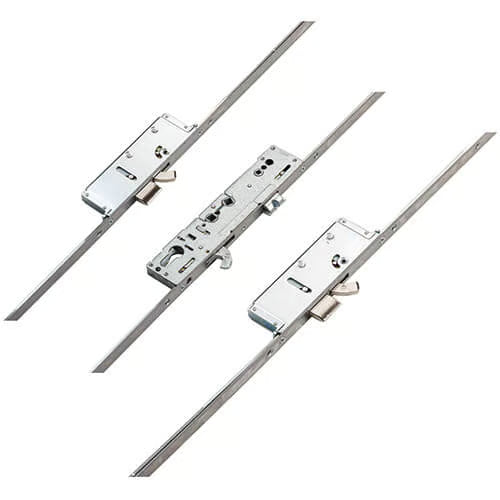

Mantis 3 Latch 3 Hooks 2 Deadbolts Double Spindle Multipoint Door Lock

Millenco Mantis 3 Multipoint Door Lock

The Millenco Mantis 3 multipoint door lock is designed for enhanced security and durability, featuring a robust configuration of 3 hooks, 2 deadbolts, and 1 latch. This third-generation lock maintains the traditional 92mm centres while incorporating the unique locking points of its predecessors, the Mantis 1 and 2 series.

Key Features:

• Locking Mechanism: The Mantis 3 utilizes a combination of hooks and deadbolts, ensuring a secure closure without rollers.

• Variants Available: Choose from three configurations:

  • 2 hooks and 3 deadbolts
  • 3 hooks and 2 deadbolts with 2 rollers
  • Passive lock version

• Faceplate Options: Available with a 16mm faceplate, moving away from the historical 20mm option.

Identification Tips:

To identify a Millenco Mantis 3 lock, check for the unique hook and deadbolt arrangement and measure the centres to confirm the 92mm/62mm specification. Early versions may lack branding, so careful inspection is essential.

Gearbox Specifications:

• Configuration: Double spindle for lift lever or nightlatch operation.
• Backset: Fixed at 35mm.
• Dimensions: Gearboxes measure 228mm high by 50mm wide, with hookbolt versions featuring a central hook bolt and latch.

Operation Instructions:

To Lock:

1. Close the door to engage the latch automatically.
2. Lift the handle to engage the locking points.
3. Turn the key to secure the system.

To Unlock:

1. Turn the key to unlock.
2. Push the handle down to disengage the locking points.
3. A quarter turn of the key will retract the latch.

Additional Products:

We offer a variety of associated products for the Millenco Mantis 3, including keeps, spindles, handles, and accessories to enhance your locking system.

Latch Reversal:

To reverse the latch, simply undo the screws, reverse the latch, and reinsert the screws.

Applications:

This lock is suitable for various door materials, including UPVC, aluminium, timber, and composite doors, making it a versatile choice for any installation.

Product Specifications:

• Manufacturer: Millenco
• Backset: Selectable
• Centres PZ: 92mm/62mm
• Faceplate: Selectable
• Spindle Size: 8mm
• Hooks: 3
• Deadbolts: 2
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Operation: Selectable
• Spindle: Double 8mm
• Handing: Non-handed
• Distance Between Inner Locking: 1100mm
• Height: 2200mm
• Top Hook to Spindle: 550mm
• Bottom Hook to Spindle: 550mm
• Door Material: UPVC, Aluminium, Timber, Composite

For a secure and reliable locking solution, the Millenco Mantis 3 multipoint door lock is an excellent choice, combining advanced technology with user-friendly operation.
