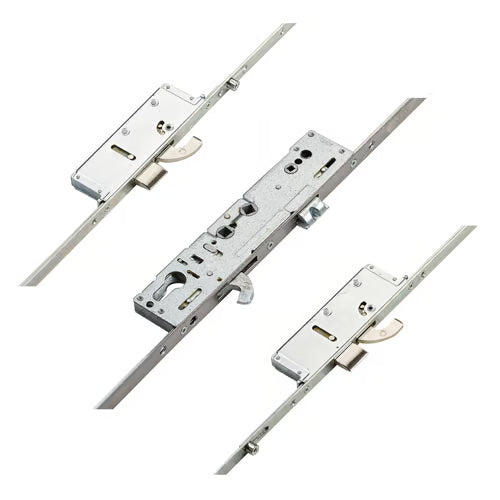

Mantis 3 Latch 2 Deadbolts 3 Hooks 2 Rollers Double Spindle Multipoint Door Lock

Millenco Mantis 3 Multipoint Door Lock Overview

The Millenco Mantis 3 multipoint door lock is designed for enhanced security and durability, featuring a robust configuration that includes 2 rollers, 3 hooks, 2 deadbolts, and 1 latch. This third-generation lock is part of the Yale group of companies and is engineered to provide reliable performance for both UPVC and aluminium doors.

Key Features:

• Locking Mechanism: The Mantis 3 utilizes a sophisticated locking system with 92mm/62mm centres, ensuring a secure fit and operation.

• Variants Available: Choose from three configurations:

  • 2 hooks and 3 deadbolts
  • 3 hooks and 2 deadbolts
  • Passive lock version

• Faceplate Options: Available with a 16mm faceplate, previously offered with a 20mm option.

• Gearbox Configuration: The gearbox is designed for double spindle operation, with a fixed backset of 35mm, ensuring compatibility with various door types.

Installation and Identification:

Identifying the Mantis 3 lock can be done by examining the unique arrangement of hooks and deadbolts. Measure the centres to confirm the 92mm/62mm specification. Note that earlier versions may have slight variations in hook positions, but adjustments can be made for compatibility.

Operation Instructions:

To lock the door:

1. Close the door to engage the latch automatically.
2. Lift the handle to engage the locking points.
3. Turn the key to secure the system.

To unlock the door:

1. Turn the key to unlock the system.
2. Push the handle down to disengage the locking points.
3. A quarter turn of the key will retract the latch.

Additional Information:

• Rollers: Designed to compress and pull the door against the frame, helping to prevent dust and water ingress while maintaining door integrity.

• Latch Reversal: Easily reversible by undoing the screws in the latch, allowing for flexible installation.

• Associated Products: A range of compatible products, including keeps, spindles, handles, and accessories, are available to enhance your locking system.

Specifications:

• Manufacturer: Millenco
• Backset: 35mm
• Centres PZ: 92mm/62mm
• Spindle Size: 8mm
• Operation: Double spindle
• Handing: Non-handed
• Door Material Compatibility: UPVC, Aluminium

This comprehensive overview of the Millenco Mantis 3 multipoint door lock highlights its features, operation, and installation, ensuring you have all the necessary information for a secure and efficient locking solution.
