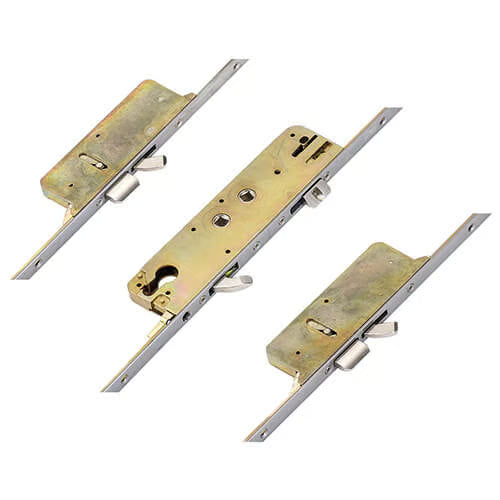

Mantis 2 Latch 3 Hooks 2 Deadbolts Double Spindle Multipoint Door Lock - Option 1 - 16mm Faceplate

Millenco Mantis 2 Multipoint Door Lock

The Millenco Mantis 2 multipoint door lock is designed for enhanced security and durability, featuring a robust configuration of 3 hooks, 2 deadbolts, and 1 latch. This second-generation lock is part of the Yale group of companies and is specifically engineered for French doors, ensuring a secure fit with its unique 550mm hook centres.

Key Features:

• Variations: Available in three configurations:

  • 3 hooks and 2 deadbolts
  • 3 hooks and 2 deadbolts with 2 rollers
  • Passive lock version

• Faceplate Options: Historically offered with a 20mm faceplate, the Mantis 2 is now exclusively available with a 16mm faceplate.

• Identification: The Mantis 2 is easily identifiable by its double spindle and unique 95mm and 65mm centres, making it the only lock of its kind on the market.

• Gearbox Configuration: The gearbox is designed for double spindle operation, compatible with lift lever or nightlatch mechanisms, and features a standard backset of 35mm.

Dimensions:

• Gearbox: 205mm high x 55mm wide
• Central hook bolt: 45mm high
• Latch: 23mm high, projects 11mm

Operation Instructions:

To Lock the Door:

1. Close the door to engage the latch automatically.
2. Lift the handle to engage the locking points.
3. Turn the key to secure the system.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle down to disengage the locking points.
3. A quarter turn of the key will retract the latch.

Associated Products:

We offer a variety of related products for the Millenco Mantis 2, including keeps, spindles, handles, and other accessories to ensure complete compatibility and functionality.

Latch Reversal Instructions:

To reverse the latch, simply undo the screws, remove the latch, reverse it, and reinsert the screws.

Applications:

The Millenco Mantis 2 is suitable for various door materials, including UPVC, aluminium, timber, and composite doors, making it a versatile choice for enhancing security across different installations.

Product Specifications:

• Manufacturer: Millenco
• Backset: Selectable (refer to measurement guide)
• Centres PZ: 95mm/65mm (refer to measurement guide)
• Spindle Size: 8mm
• Handing: Non-handed
• Distance Between Inner Locking: 1100mm
• Distance Between Outer Locking: 1120mm
• Height: 2200mm
• Top Hook to Spindle: 550mm
• Bottom Hook to Spindle: 550mm
• Door Material Compatibility: UPVC, Aluminium, Timber, Composite

For any further inquiries or assistance, feel free to reach out!
