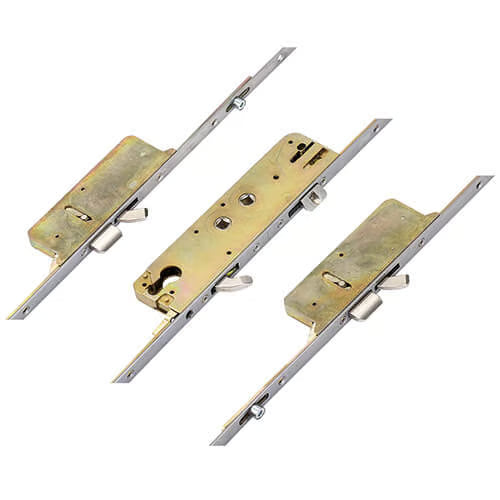

Product Overview: Millenco Mantis 2 Multipoint Door Lock

The Millenco Mantis 2 multipoint door lock is designed for enhanced security and durability, featuring a robust configuration that includes:

• 2 Rollers
• 3 Hooks
• 2 Deadbolts
• 1 Latch

This second-generation lock is available in two variations, with unique measurements of 65mm and 95mm centres, and a 16mm wide faceplate, making it a reliable choice for both UPVC and aluminium doors.

Key Features:

• Configuration Options: Choose from three variants:

  • 3 hooks and 2 deadbolts
  • 3 hooks and 2 deadbolts with 2 rollers
  • Passive lock version

• Identifying Characteristics: The Mantis 2 is the only lock on the market with a double spindle and the specified centre measurements, ensuring easy identification and compatibility.

• Gearbox Specifications:

  • Only available in a double spindle configuration for lift lever or nightlatch operation.
  • Backset: 35mm
  • Dimensions: 205mm high by 55mm wide

• Hook and Roller Design:

  • Hooks measure 140mm by 48mm, with deadbolts throwing 20mm into their keeps.
  • Rollers assist in compression, enhancing weather sealing and preventing door warping.

Operation Instructions:

To lock the door:

1. Close the door to engage the latch automatically.
2. Lift the handle to engage the locking points.
3. Turn the key to secure the system.

To unlock the door:

1. Turn the key to unlock the system.
2. Push the handle down to disengage the locking points.
3. A quarter turn of the key will retract the latch.

Additional Information:

• Latch Reversal: Easily reverse the latch by undoing the screws, flipping it, and reinserting.
• Associated Products: We offer a range of compatible products, including keeps, spindles, handles, and accessories.

Product Specifications:

• Manufacturer: Millenco
• Backset: Selectable
• Centres PZ: 95mm/65mm
• Faceplate: Selectable
• Spindle Size: 8mm
• Operation: Double spindle
• Handing: Non-handed
• Material Compatibility: UPVC, Aluminium

For any further inquiries or to explore our range of associated products, please feel free to reach out!
