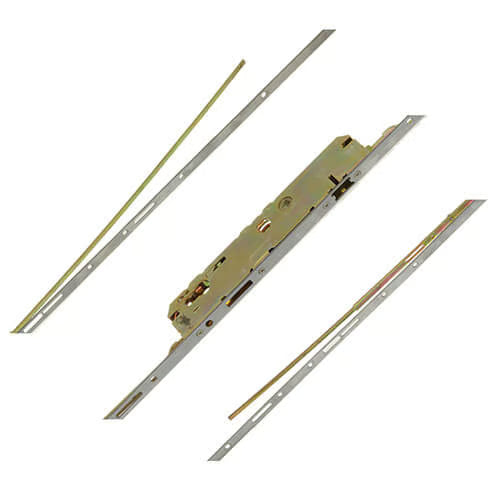

Mantis 1 Slave Lock Lift Lever Multipoint Door Lock

Product Overview: Millenco Mantis 1 Multipoint Door Lock

The Millenco Mantis 1 multipoint door lock is designed specifically for the passive door in a pair of French doors, featuring a unique configuration that ensures security and ease of use.

Key Features:

• Locking Points: This version does not include locking points, making it ideal for passive applications.

• Centres: The lock features 117mm centres, tailored for French door installations.

• Variants Available: Choose from three configurations:

  • 3 hooks and 2 deadbolts
  • 3 hooks and 2 deadbolts with 2 rollers
  • 4 roller version
  • Passive lock version

• Compatibility: Historically, Mantis 1 locks have been versatile, used on timber, composite, and UPVC doors. Note that older versions with hooks and deadbolts in different locations are no longer available, requiring some adjustments for installation.

• Cover Plates: If your installation includes a cover plate (24mm or 44mm wide), it can be reused with the new lock. The linkage plate allows for easy swapping of faceplates.

Identification:

Identifying the Millenco Mantis 1 lock is straightforward due to its unique double spindle design and specific centre measurements. Ensure you have the correct lock by checking for these features, especially since earlier models may lack branding.

Gearbox Specifications:

• Configuration: Double spindle for lift lever or nightlatch operation.
• Backset: Fixed at 35mm.
• Dimensions: The gearbox measures 260mm high by 53mm wide, featuring a central hook bolt and a latch.

Operation Instructions:

• To Lock:

  1. Lift the handle to engage the locking points.
  2. Turn the key to secure the locking points and main deadbolt.

• To Unlock:

  1. Turn the key to unlock.
  2. Push the handle down to disengage the locking points.

Additional Products:

We offer a variety of associated products for the Millenco Mantis 1, including keeps, spindles, handles, and other accessories to enhance your door security.

Product Specifications:

• Manufacturer: Millenco
• Backset: Select from drop-down options
• Centres PZ: 117mm
• Faceplate: Select from drop-down options
• Spindle Size: 8mm
• Main Gearbox: Passive lock
• Operation: Select from drop-down options
• Spindle: Single 8mm
• Handing: Non-handed
• Height: 1500mm
• Door Material Compatibility: UPVC, Aluminium, Timber, Composite

This comprehensive overview ensures you have all the necessary information to select and install the Millenco Mantis 1 multipoint door lock effectively.
