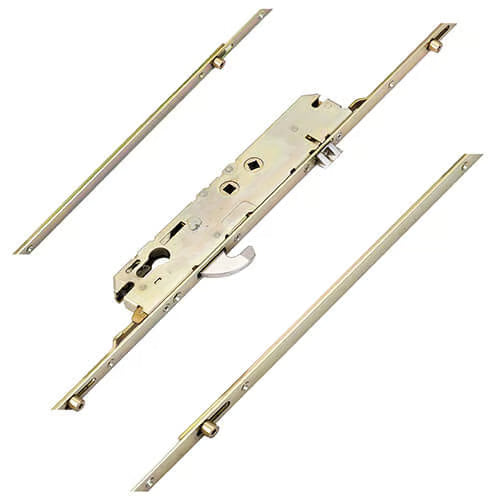

Product Overview: Millenco Mantis 1 Multipoint Door Lock
The Millenco Mantis 1 multipoint door lock is designed for security and durability, featuring 4 rollers and 1 latch. This lock is part of the Yale group of companies and is recognized for its unique gearbox with 86/117mm centres.
Key Features:
-
Variants Available:
- 3 hooks and 2 deadbolts
- 3 hooks and 2 deadbolts with 2 rollers
- 4 roller version
- Passive lock version
-
Compatibility:
- Suitable for timber, composite, and UPVC doors.
- Older versions may lack markings on the faceplate.
-
Installation Notes:
- Some repositioning of keeps and locking positions may be necessary for older models.
- Cover plates (24mm or 44mm wide) can be reused on replacement locks.
Specifications:
- Manufacturer: Millenco
- Backset: 35mm (only available configuration)
- Centres PZ: 117mm/86mm
- Spindle Size: 8mm (double spindle)
- Rollers: 4
- Latch: 1
- Main Gearbox: Latch & hookbolt
- Operation: Double spindle for lift lever or nightlatch
-
Dimensions:
- Gearbox: 260mm high x 53mm wide
- Distance Between Inner Locking: 460mm
- Distance Between Outer Locking: 1615mm
- Height: 2200mm
- Top Roller to Spindle: 765mm
- Bottom Roller to Spindle: 850mm
Operation Instructions:
-
To Lock:
- Close the door to engage the latch automatically.
- Lift the handle to engage locking points.
- Turn the key to lock the system.
-
To Unlock:
- Turn the key to unlock the system.
- Push the handle down to disengage locking points.
- A quarter turn of the key will retract the latch.
Maintenance and Accessories:
- Repair parts for existing gearboxes are available.
- A range of associated products, including keeps, spindles, handles, and accessories, are stocked.
Latch Reversal: To reverse the latch, undo the screws, reverse the latch, and reinsert the screws.
This multipoint door lock is an excellent choice for enhancing the security of your doors while ensuring ease of use and installation.
