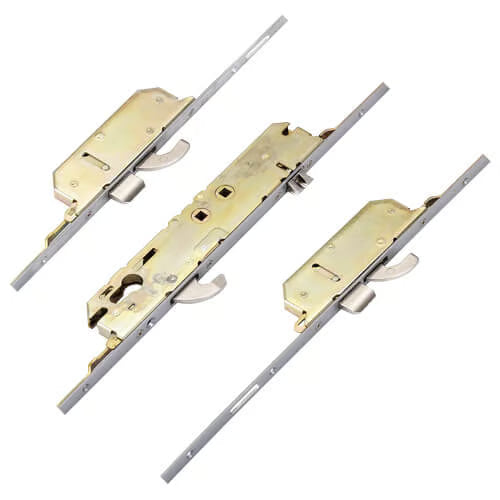

Mantis 1 Latch 3 Hooks 2 Deadbolts Double Spindle Multipoint Door Lock

Product Overview: Millenco Mantis 1 Multipoint Door Lock

The Millenco Mantis 1 multipoint door lock is designed for enhanced security and versatility, featuring a robust configuration of 3 hooks, 2 deadbolts, and 1 latch. This lock is ideal for various door materials, including UPVC, aluminium, timber, and composite.

Key Features:

• Unique Gearbox Design: The Mantis 1 lock boasts a distinctive gearbox with 86/117mm centres, ensuring compatibility with a range of installations. Note that older versions may lack markings on the faceplate.

• Multiple Variants Available: Choose from three configurations:

  • 3 hooks and 2 deadbolts
  • 3 hooks and 2 deadbolts with 2 rollers
  • 4 roller version
  • Passive lock version

• Adaptability: While older models with different hook and deadbolt placements are no longer produced, the Mantis 1 allows for repositioning of keeps and locking positions for a seamless fit.

• Cover Plate Compatibility: If your installation includes a cover plate (24mm or 44mm), it can be reused with the new lock. The linkage plate behind the cover allows for easy swapping of the faceplate.

Identification and Specifications:

Identifying a Millenco Mantis 1 lock is straightforward due to its unique double spindle design and specific centre measurements. The lock features:

• Gearbox Dimensions: 260mm high by 53mm wide
• Backset: 35mm (only available configuration)
• Operation: Double spindle for lift lever or nightlatch operation

Locking Mechanism:

To operate the lock:

• Locking:

  1. Close the door to engage the latch automatically.
  2. Lift the handle to engage all locking points.
  3. Turn the key to secure the system.

• Unlocking:

  1. Turn the key to unlock.
  2. Push the handle down to disengage the locking points.
  3. A quarter turn of the key retracts the latch.

Maintenance and Accessories:

We offer a variety of associated products for the Mantis 1, including keeps, spindles, handles, and other accessories. For latch reversal, simply undo the screws, reverse the latch, and reinsert the screws.

Product Specifications:

• Manufacturer: Millenco
• Backset: Selectable
• Centres PZ: 117mm/86mm
• Faceplate: Selectable
• Spindle Size: 8mm
• Hooks: 3
• Deadbolts: 2
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Operation: Selectable
• Spindle: Double 8mm
• Handing: Non-handed
• Distance Between Inner Locking: 1290mm
• Distance Between Outer Locking: 1300mm
• Height: 2200mm
• Top Hook to Spindle: 610mm
• Bottom Hook to Spindle: 680mm

The Millenco Mantis 1 multipoint door lock is a reliable choice for securing your home or business, combining strength, adaptability, and ease of use.
