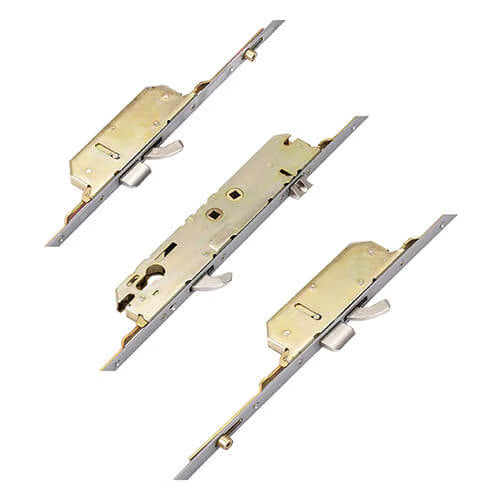

Product Overview: Millenco Mantis 1 Multipoint Door Lock
The Millenco Mantis 1 multipoint door lock is designed for enhanced security and durability, featuring a robust configuration that includes 2 rollers, 3 hooks, 2 deadbolts, and 1 latch. This lock is part of the Yale group of companies and is recognized for its unique gearbox with 86/117mm centres.
Key Features:
-
Variants Available: Choose from three configurations:
- 3 hooks and 2 deadbolts
- 3 hooks and 2 deadbolts with 2 rollers
- 4 roller version
- Passive lock version
-
Compatibility: The Mantis 1 lock is suitable for both timber and composite doors, as well as UPVC doors.
-
Identification: Easily identifiable by its double spindle and unique centre measurements, ensuring you select the correct lock.
-
Gearbox Specifications:
- Configuration: Double spindle for lift lever or nightlatch operation
- Backset: 35mm
- Dimensions: 260mm high by 53mm wide
Operation Instructions:
To lock the door:
- Close the door to engage the latch automatically.
- Lift the handle to engage the locking points.
- Turn the key to secure the system.
To unlock the door:
- Turn the key to unlock the system.
- Push the handle down to disengage the locking points.
- A quarter turn of the key will retract the latch.
Installation Notes:
- Latch Reversal: To reverse the latch, unscrew, reposition, and reinsert the screws.
- Roller Adjustment: Rollers can be adjusted by 1mm for optimal weather sealing.
Product Specifications:
- Manufacturer: Millenco
- Backset: Selectable
- Centres PZ: 117mm/86mm
- Spindle Size: 8mm
- Hooks: 3
- Deadbolts: 2
- Latch: 1
- Operation: Double spindle
- Handing: Non-handed
- Door Material: UPVC, Aluminium
For additional components such as keeps, spindles, handles, and accessories, please explore our range of associated products for the Millenco Mantis 1 multipoint door locks.
