Description
Product Overview

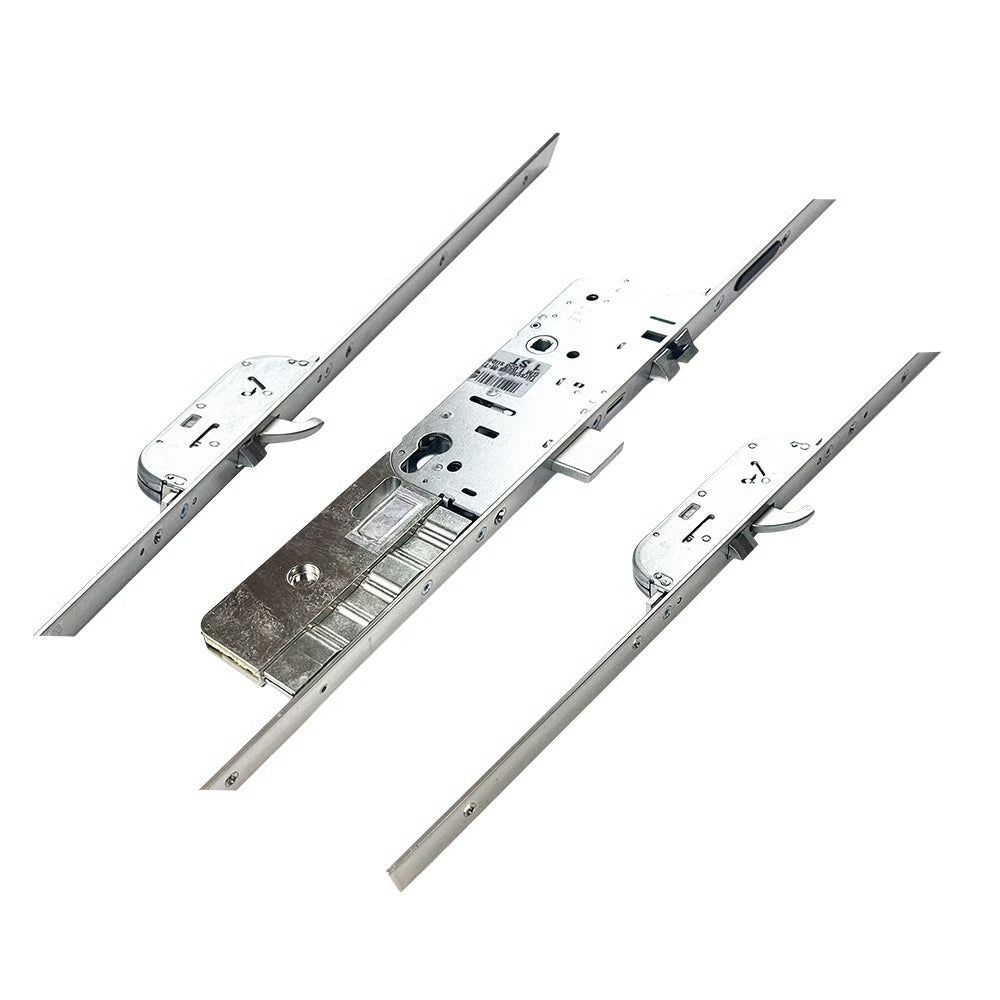

The Maco M-TS Electric Multipoint Door Lock is engineered for high security and reliability, making it an ideal choice for modern entrance doors. This advanced locking system features a robust design with multiple locking points, ensuring enhanced protection against unauthorized access.
Key Features
-
Locking Mechanism:

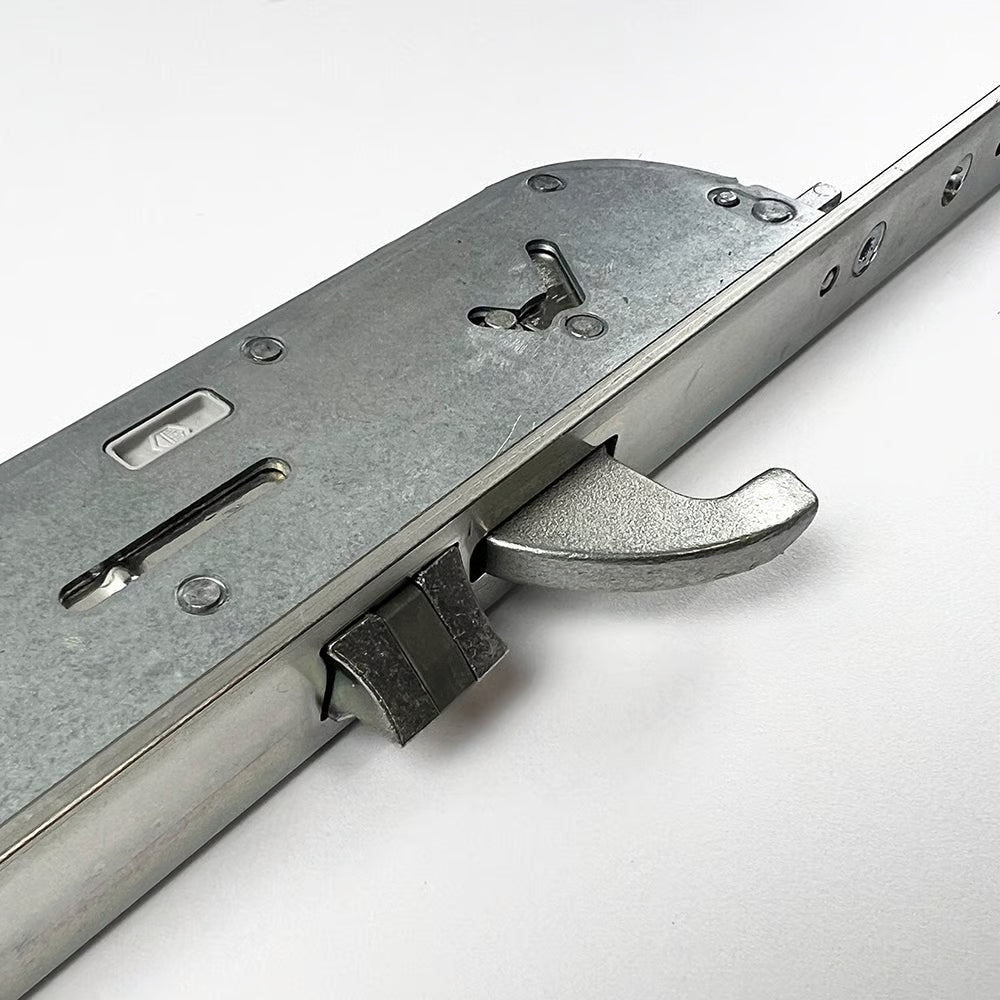

- 2 Uni-directional Hooks: Securely engage with keeps to compress the door against the frame, resisting forced entry.
- 2 Anti-Lift Bolts: Strategically positioned to prevent vertical lifting and jamming of the door.

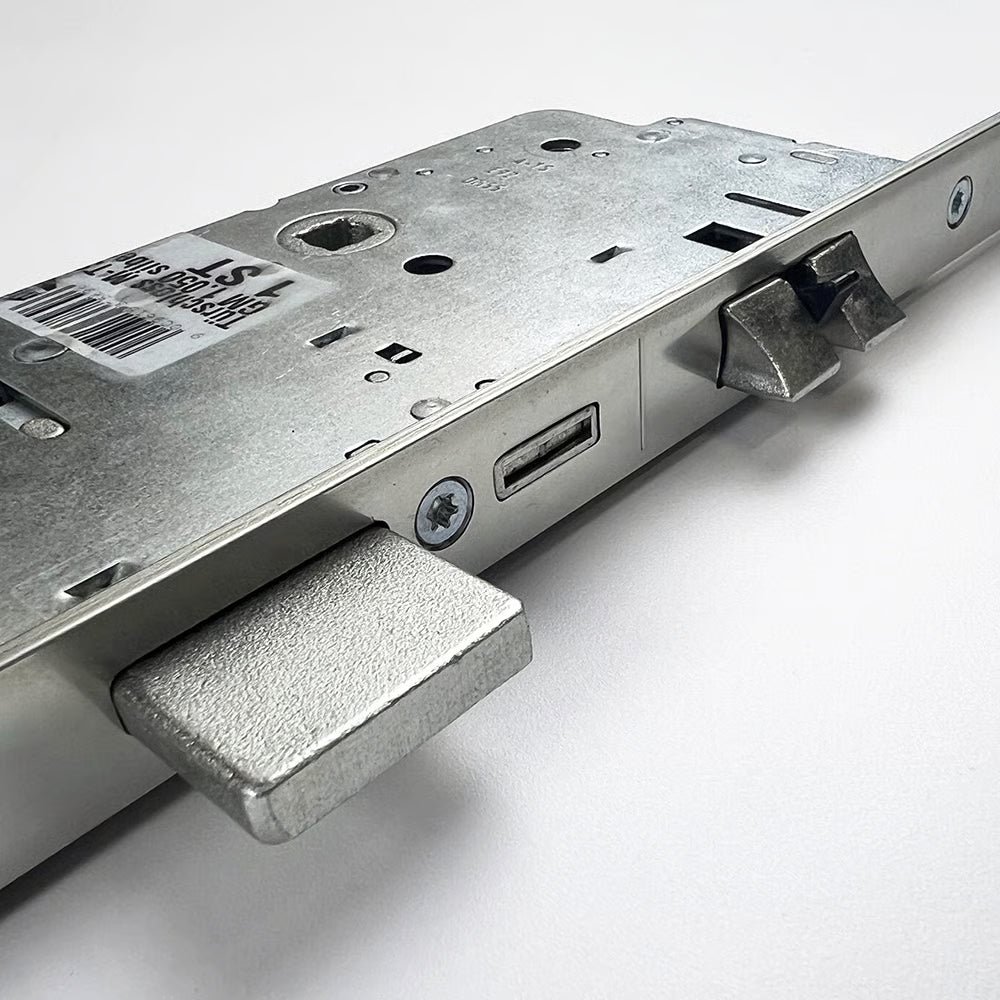

- 1 Central Deadbolt & Latch: The deadbolt serves as the primary mechanical lock, while the latch allows for hands-free or remote entry.
-
Design Specifications:
- Faceplate: Flat 24mm with square ends, designed for aesthetic integration with various door types.
- Overall Height: 2200mm, suitable for a range of door installations.
- Backset: 35mm, compatible with PVC, composite, and timber doors.
-
Operation:
- Electric operation with a single 8mm spindle, allowing for non-handed installation on both left and right-opening doors without modification.
Security Assurance
The M-TS lock maintains full mechanical locking capabilities through its hooks, anti-lift bolts, and central deadbolt, ensuring security even during power outages. It is essential to use compatible keeps for the anti-lift bolts to maximize protection against physical attacks.
Installation Compatibility
This lock is designed for easy integration with intercoms, access control systems, or smart home setups, making it a versatile choice for modern security needs.
Product Specifications
- Manufacturer: Maco
- Backset: 35mm
- Centres (PZ): 92mm
- Operation: Electric
- Spindle: Single 8mm
- Handing: Non-handed
- Hooks: 2
- Anti-lift bolts: 2
- Faceplate: Flat 24mm – Square Ends
- 1, 2 or 3 Piece Strip: 1-piece
- Distance Between Outer Locking Points: 1490mm
- Shootbolt Attachments: No
- Overall Lock Height: 2200mm
This comprehensive locking solution not only enhances security but also provides convenience and flexibility for various door types and access control systems.
