Description
Product Overview
Introducing the Hoppe handles from the London range, designed for both internal and external use. These handles feature a sprung mechanism with a 48pz configuration, ensuring smooth operation and durability.
Key Features
- Backplate Dimensions: 235mm x 28mm
- Finishes Available: Various options to match your aesthetic
- Compatibility: Ideal for aluminium doors; not suitable for Union 3 point locking systems (models L22180, L22174 & L22172)

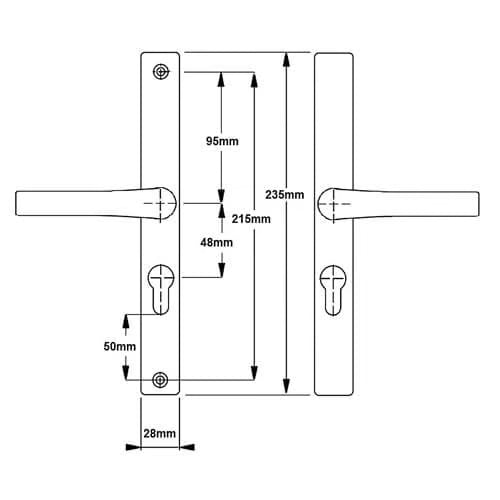

Installation Details
- Fixing Screw Distance: 215mm
- Bottom Screw Position: 50mm below the euro profile cut-out
- Top Screw to Spindle Distance: 95mm

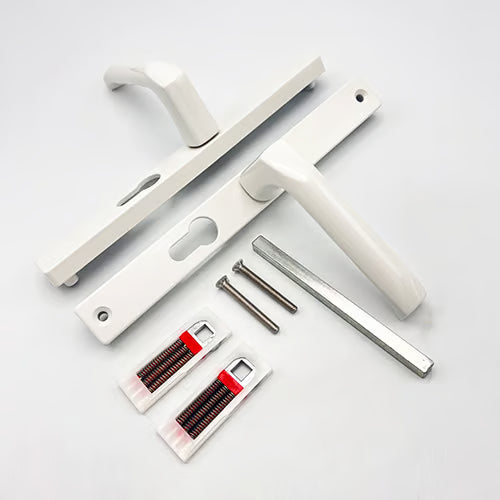

Included Components
- Supplied as a pair
- Complete with spring cassettes
- 8mm square spindle
- 2 colour-coordinated M5 screws for door thickness of 47-56mm
Product Specifications
- Sprung Mechanism
- Length: 235mm
- Width: 28mm
- Centres (PZ): 48mm
- Screw Centres: 215mm
- Base of Euro to Bottom Screw: 50mm
- Non-handed Design
- Packaging: Polybagged for protection
Elevate your door hardware with the stylish and functional Hoppe handles, perfect for enhancing both security and design in your space.
